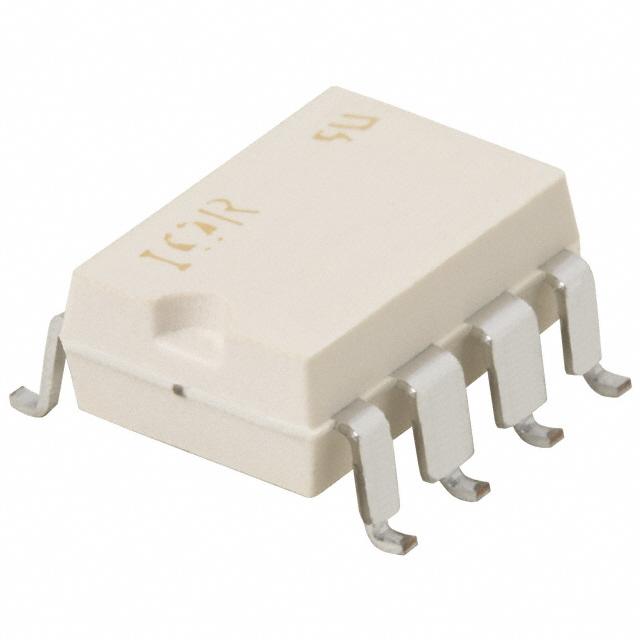

PVDZ172NS-TPBF Infineon Technologies
Same model may have multiple batches, images only for reference.

PVDZ172NS-TPBF

Part No PVDZ172NS-TPBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description IC RELAY PHOTOVO 60V 1.5A 8-SMD
Datasheet
PVDZ172NS-TPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type DC
Max On Resistance 250 mOhm
Load Current 1.5A
Voltage - Input 1.2VDC
Voltage - Load 0 to 60 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SMT Modified
Relay Type Relay
Win Source Part Number 121894-PVDZ172NS-TPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PVDZ172NS-TPBF CAD Model

Description

The Infineon Technologies relay is a SPST-NO (1 Form A) relay that features a load current of 1.5A and a voltage load of 0 to 60 V.

  • Circuit: SPST-NO (1 Form A)
  • Load Current: 1.5A
  • Voltage Load: 0 to 60 V
  • Max On Resistance: 250 mOhm
  • Package: 8-SMT modified
  • Category: Relays
  • Voltage Input: 1.2VDC
  • Mounting: Surface Mount Technology
  • Termination Style: Gull Wing
