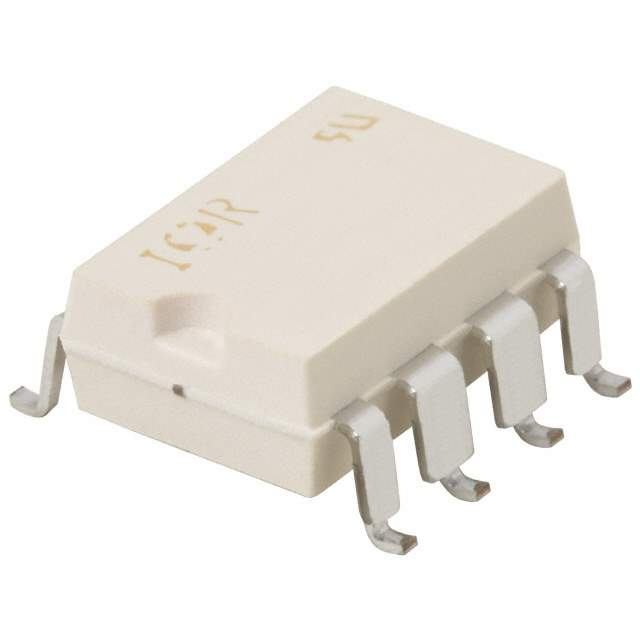

PVD3354NS Real Image
Same model may have multiple batches, images only for reference.

PVD3354NS

Part No PVD3354NS
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description IC RELAY PHOTOVO 300V 240MA 8SMD / Solid State Relay 25mA DC-IN 0.24A 300V DC-OUT 6-Pin PDIP SMT Tube
Datasheet
PVD3354NS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Infineon Technologies
Series PVD, HEXFET
Packaging Tube
Part Status Obsolete(EOL)
Circuit SPST-NO (1 Form A)
Output Type DC
On-State Resistance (Maximum) 6 Ohm
Load Current 240mA
Voltage - Input 1.2VDC
Voltage - Load 0 ~ 300 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm) 4 Leads
Manufacturer Package 8-SMT Modified
Relay Type Relay
Win Source Part Number 792740-PVD3354NS
Popularity Medium
Supply and Demand Status Limited
Family Name PVD3354NS
Introduction Date November 19, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PVD3354NS CAD Model

Description

The Infineon Technologies PVD3354NS is a DC SPST-NO (1 Form A) relay that has a load current of 240mA.

  • Load Current: 240mA
  • Voltage Load: 0-300V
  • On-State Resistance (Maximum): 6 Ohm
  • Package: 8-SMD (0.300", 7.62mm) 4 leads
  • Voltage Input: 1.2VDC
  • Output Type: DC
  • Series: PVD, HEXFET
  • Mounting: Surface Mount (SMD)
  • Status: Obsolete (EOL)
  • Alternative Parts: TS122S, TS122PTR, TS122STR, TS122
