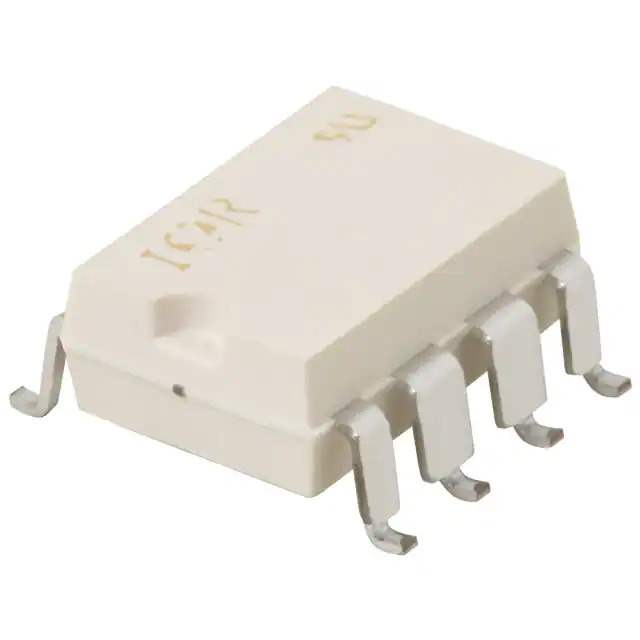

PVD1352NS Real Image
Same model may have multiple batches, images only for reference.

PVD1352NS

Part No PVD1352NS
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 550MA 0-100V
Datasheet
PVD1352NS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVD, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 100 V
Load Current 550 mA
On-State Resistance (Max) 1.5 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-SMD
Standard Package 50 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658156-PVD1352NS
Ultra Librarian 3D Model Ultra Librarian PVD1352NS CAD Model

Description

The 658156-PVD1352NS is a solid-state relay from the PVD series by Infineon Technologies.

  • Voltage Input: 1.2VDC
  • On-State Resistance: 1.5 Ohms
  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current: 550 mA
  • Voltage Load: 0 V to 100 V
  • Mounting: Surface Mountable
  • Package: 8-SMD
  • Termination Style: Gull Wing
