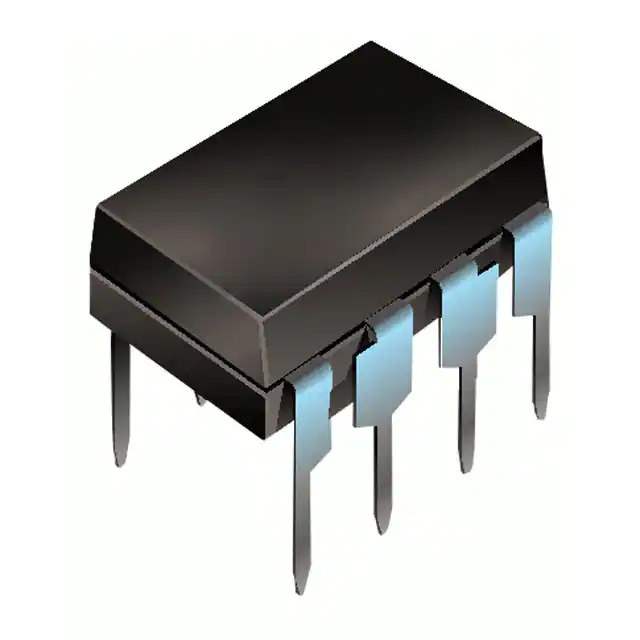

PVD1352N Real Image
Same model may have multiple batches, images only for reference.

PVD1352N

Part No PVD1352N
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 550MA 0-100V / Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 4 Leads
Datasheet
PVD1352N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVD, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 100 V
Load Current 550 mA
On-State Resistance (Max) 1.5 Ohms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-DIP Modified
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658155-PVD1352N
Ultra Librarian 3D Model Ultra Librarian PVD1352N CAD Model

Description

The 658155-PVD1352N is a solid state relay designed for DC switching applications manufactured by Infineon Technologies.

  • Series: PVD
  • Technology: HEXFET™
  • Termination Style: PC Pin
  • Load Current: 550mA
  • Load Voltage: 0V to 100V
  • Package: 8-DIP, 4 Leads
  • Status: Obsolete
