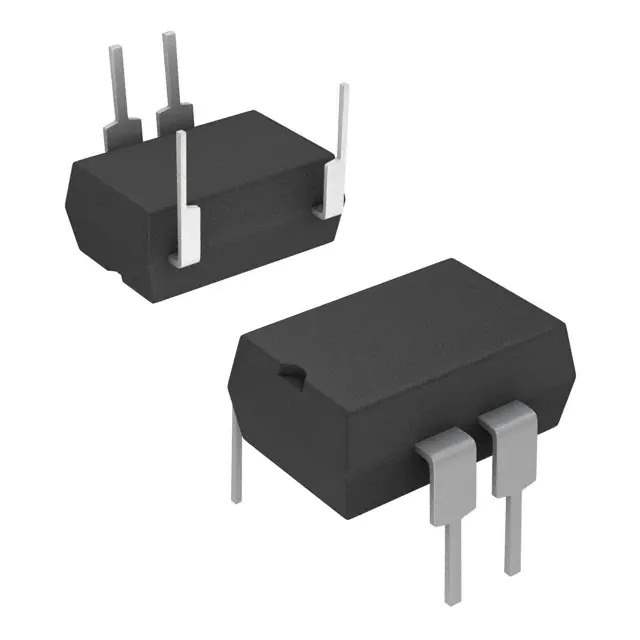

PVAZ172N Real Image
Same model may have multiple batches, images only for reference.

PVAZ172N

Part No PVAZ172N
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1A 0-60V / Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 4 Leads
Datasheet
PVAZ172N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVA, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 60 V
Load Current 1 A
On-State Resistance (Max) 500 mOhms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-DIP Modified
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658149-PVAZ172N
Ultra Librarian 3D Model Ultra Librarian PVAZ172N CAD Model

Description

The PVAZ172N is a solid-state relay (SSR) from Infineon Technologies. It belongs to the PVA, HEXFET® series and is designed for high-performance switching applications.

  • Series: PVA, HEXFET®
  • Type: Solid State Relay (SSR)
  • Termination: PC pin
  • Package: Tube
  • Standard Package Size: 50 pcs
  • Input Voltage: 1.2VDC
  • Output Type: AC, DC
  • Circuit: SPST-NO
  • On-State Resistance: 500 mOhms
  • Load Current: 1A
  • Voltage Load: 0V to 60V
  • Mounting: Through Hole
  • Package: 8-DIP
  • Leads: 4
