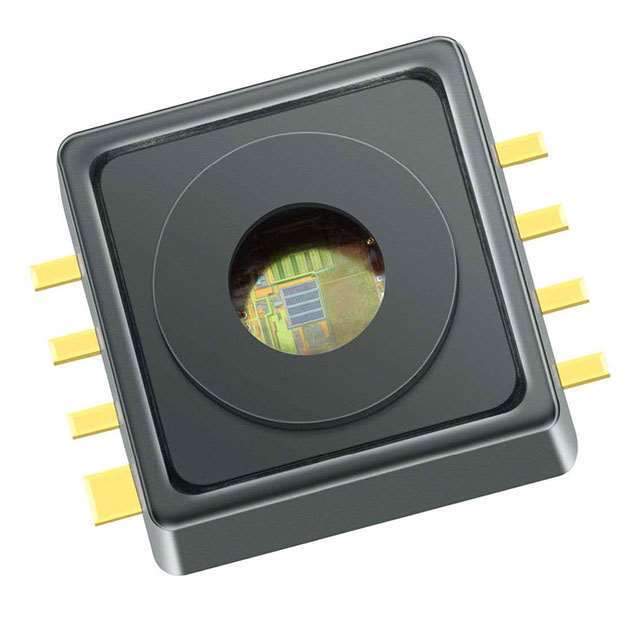

KP234XTMA1 Real Image
Same model may have multiple batches, images only for reference.

KP234XTMA1

Part No KP234XTMA1
Manufacturer Infineon Technologies
Catalog Pressure Sensors, Transducers
Description IC ANLG BAROMETRIC SNSR DSOF8-16 / Pressure Sensor 5.8PSI ~ 16.68PSI (40kPa ~ 115kPa) Absolute 1.33 V ~ 4.7 V 8-SMD Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Applications Board Mount
Pressure Type Absolute
Operating Pressure 5.8PSI ~ 16.68PSI (40kPa ~ 115kPa)
Output Type Analog Voltage
Output 1.33 V ~ 4.7 V
Accuracy ±0.652PSI (±4.5kPa)
Voltage - Supply 4.5V ~ 5.5V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 125°C
Package / Case 8-SMD Module
Base Product Number KP234XTMA1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names KP234XTMA1TR,IFEINFKP234XTMA1,2156-KP234XTMA1,KP234-ND,448-KP234XTMA1TR,KP234,SP000700772,448-KP234XTMA1DKR,448-KP234XTMA1CT,KP234XTMA1TR-ND
Standard Package 1,500
Win Source Part Number 1023310-KP234XTMA1
Ultra Librarian 3D Model Ultra Librarian KP234XTMA1 CAD Model

Description

The KP234XTMA1 is a pressure sensor that is designed for use in board mount applications.

  • Output: Amplified
  • Temperature Compensated: Yes
  • Output Type: Analog Voltage
  • Output Range: 1.33 V ~ 4.7 V
  • Accuracy: ±0.652PSI (±4.5kPa)
  • Pressure Type: Absolute
  • Operating Pressure: 5.8PSI ~ 16.68PSI (40kPa ~ 115kPa)
  • Supply Voltage: 4.5V ~ 5.5V
  • Operating Temperature: -40°C ~ 125°C
  • Termination Style: SMD (SMT) Tab
  • Package: 8-SMD Module
