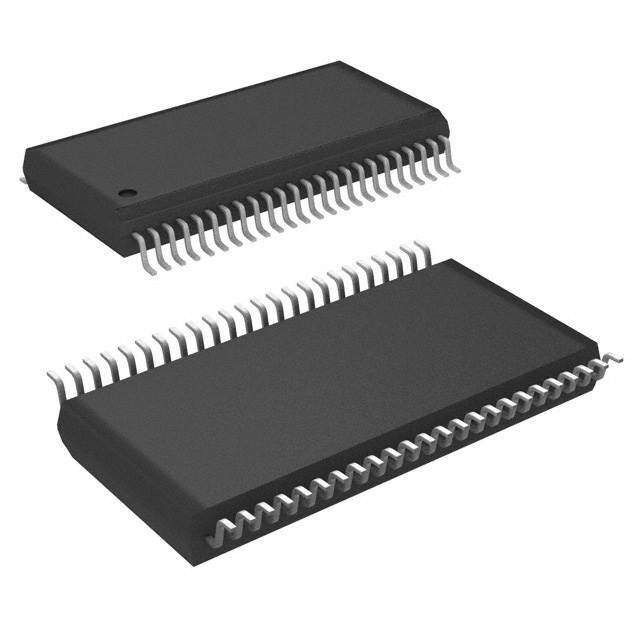

ISO1I811TXUMA1 Real Image
Same model may have multiple batches, images only for reference.

ISO1I811TXUMA1

Part No ISO1I811TXUMA1
Manufacturer Infineon Technologies
Catalog Digital Isolators
Description DGTL ISOL 500VAC 8CH SPI 48TSSOP / SPI Digital Isolator 500VAC 8 Channel 25kV/µs CMTI 48-TFSOP (0.240", 6.10mm Width)
Datasheet
ISO1I811TXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Digital Isolators
Mfr Infineon Technologies
Series ISOFACE™
Package Tape & Reel
Technology Magnetic Coupling
Type SPI
Isolated Power No
Number of Channels 8
Inputs - Side 1/Side 2 8/0
Channel Type Unidirectional
Voltage - Isolation 500VAC
Common Mode Transient Immunity (Min) 25kV/µs
Voltage - Supply 2.85V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 48-TFSOP (0.240", 6.10mm Width)
Supplier Device Package 48-TSSOP
Base Product Number ISO1I811
Other Names ISO1I811TXUMA1TR,ISO1I811T,ISO1I811TCT,ISO1I811TXUMA1DKR,ISO1I811TTR,ISO1I811TDKR,SP000876494,ISO1I811TCT,ISO1I811TXUMA1CT,ISO1I811TDKR,ISO1I811TTR
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1244289-ISO1I811TXUMA1
Ultra Librarian 3D Model Ultra Librarian ISO1I811TXUMA1 CAD Model

Description

The ISO1I811TXUMA1 is a digital isolator with a magnetic coupling technology.

  • Channels: 8 unidirectional
  • Voltage Isolation: 500VAC
  • Common Mode Transient Immunity: 25kV/µs
  • Operating Temperature Range: -40°C ~ 85°C
  • Applications: motor control and power inverters
  • Packaging: Tape and Reel
  • Manufacturer: Infineon Technologies
