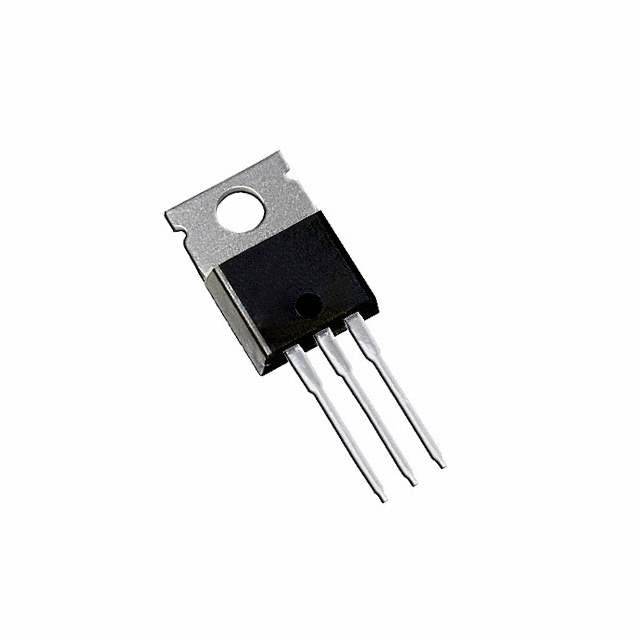

The Infineon Technologies 040777-IRGB4056DPBF is a tube/rail-mounted, through-hole IGBT type electronic component that has a reverse recovery time (trr) of 68ns and an input type of standard.

• Gate Charge: 25nC
• Temperature Range: -55°C to 175°C (TJ)
• Case/Package: TO-220AB
• Maximum Current Collector: 24A
• VCEO Maximum Collector-Emitter Breakdown Voltage: 600V
• Maximum Power Dissipation: 140W
• Pulsed Collector Current: 48A
• Collector-Emitter Saturation Voltage(Max): 1.85V @ 15V, 12A
• Total Switching Energy(Ets) (on): 75μJ
• Total Switching Energy(Ets) (off): 225μJ
• Turn-On Delay Time: 31ns
• Turn-Off Delay Time: 83ns

Its supply and demand status is limited.
