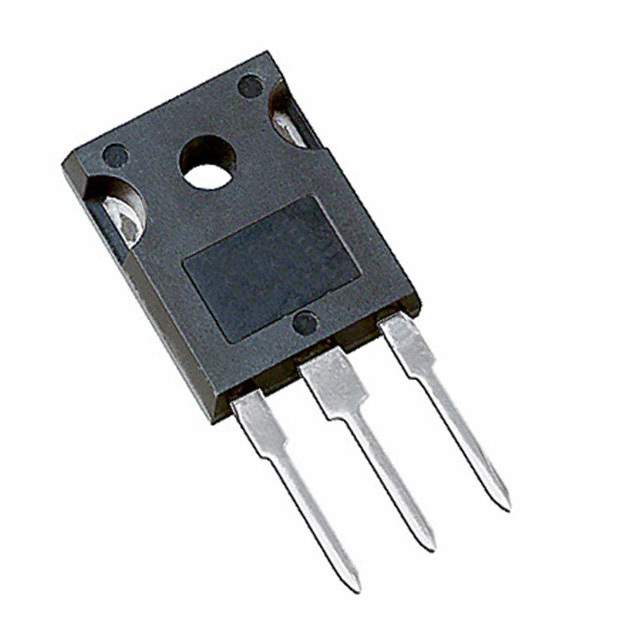

IRG4P254S Real Image
Same model may have multiple batches, images only for reference.

IRG4P254S

Part No IRG4P254S
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IGBT 250V 98A 200W TO247AC
Datasheet
IRG4P254S Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Bulk
Status Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage 250V
Maximum Current Collector 98A
Pulsed Collector Current 196A
Collector-emitter saturation voltage(Max) 1.5V @ 15V, 55A
Maximum Power Dissipation 200W
Total Switching Energy(Ets) 380μJ (on), 3.5mJ (off)
Input Type Standard
Gate Charge 200nC
Turn-on and Turn-off delay time 40ns/270ns
Testing Conditions 200V, 55A, 5 Ohm, 15V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-247AC
Win Source Part Number 1047305-IRG4P254S
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRG4P254S CAD Model

Description

The Infineon Technologies IRG4P254S is an IGBT with a maximum collector current of 98A and a maximum collector-emitter breakdown voltage of 250V.

  • Maximum Collector Current: 98A
  • Maximum Collector-Emitter Breakdown Voltage: 250V
  • Mounting: Through Hole
  • Package: TO-247AC
  • Maximum Power Dissipation: 200W
  • Collector-Emitter Saturation Voltage: 1.5V @ 15V, 55A
  • Gate Charge: 200nC
  • Switching Energy (On): 380μJ
  • Switching Energy (Off): 3.5mJ
  • Operating Temperature Range: -55°C to 150°C
