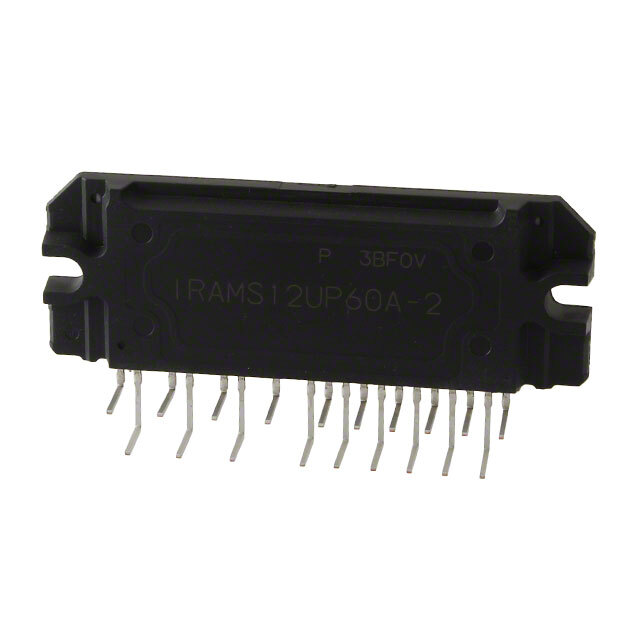

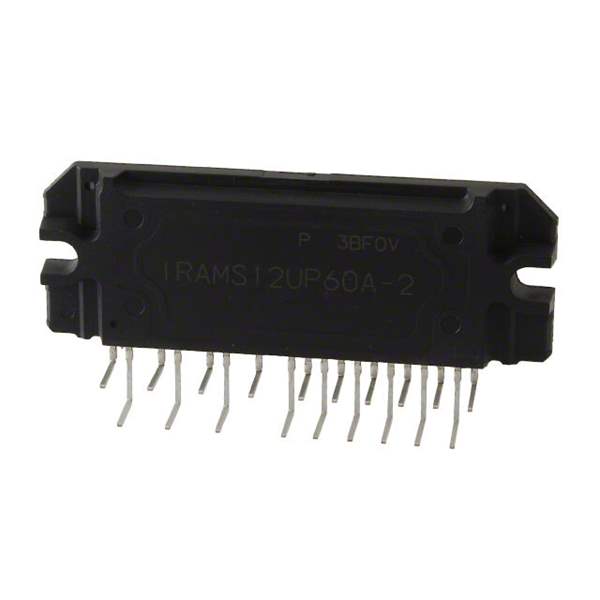

IRAMS12UP60A-2 Infineon Technologies
Same model may have multiple batches, images only for reference.

IRAMS12UP60A-2

Part No IRAMS12UP60A-2
Manufacturer Infineon Technologies
Catalog Power Drivers - Modules
Description Integrated Power Hybrid IC for Appliance Motor Drive Applications | POWER DRIVER 3 PHASE 600V MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Status Obsolete
Type IGBT
Configuration 3 Phase
Current 12A
Voltage 600V
Voltage - Isolation 2000Vrms
Manufacturer Package 23-PowerSIP Module, 19 Leads, Formed Leads
Manufacturer Pack Quantity 80
MSL Level 1 (Unlimited)
Win Source Part Number 1186842-IRAMS12UP60A-2
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRAMS12UP60A-2 CAD Model

Description

The Infineon Technologies 1186842-IRAMS12UP60A-2 is a 3 phase IGBT with a voltage of 600V and a current of 12A.

  • Voltage - Isolation: 2000Vrms
  • Package: 23-PowerSIP Module, 19 Leads, Formed Leads
  • Status: Obsolete
  • Supply and Demand Status: Limited
