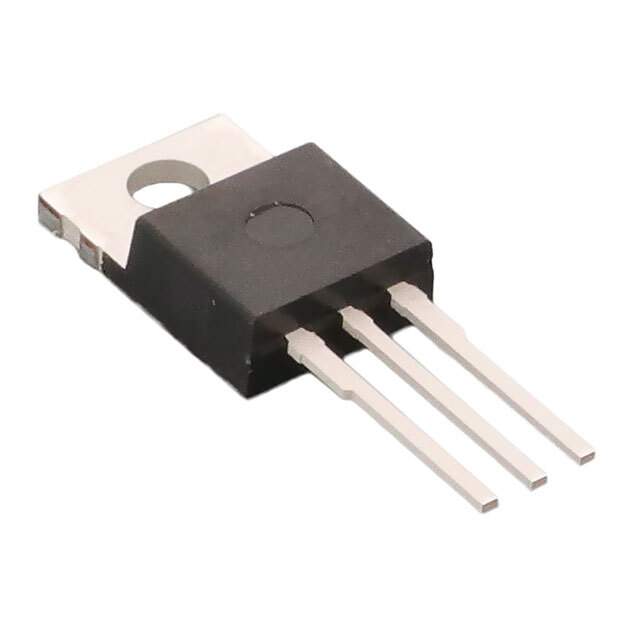

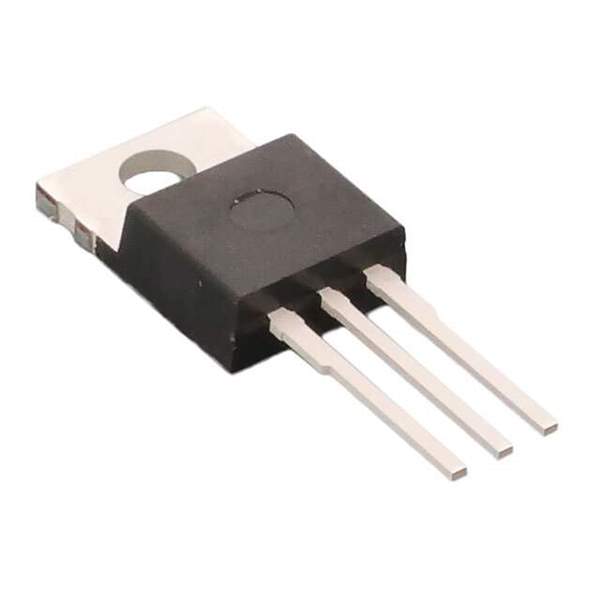

IPP65R050CFD7AAKSA1 Real Image1 IPP65R050CFD7AAKSA1 Real Image2
Same model may have multiple batches, images only for reference.
IPP65R050CFD7AAKSA1 Real Image1 IPP65R050CFD7AAKSA1 Real Image2
IPP65R050CFD7AAKSA1 Real Image1 IPP65R050CFD7AAKSA1 Real Image2
Same model may have multiple batches, images only for reference.

IPP65R050CFD7AAKSA1

Part No IPP65R050CFD7AAKSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 650V 45A TO220-3 / N-Channel 650 V 45A (Tc) 227W (Tc) Through Hole PG-TO220-3
Datasheet
IPP65R050CFD7AAKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series Automotive, AEC-Q101, CoolMOS™ CFD7A
Package Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 650 V
Current - Continuous Drain (Id) @ 25°C 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 50mOhm @ 24.8A, 10V
Vgs(th) (Max) @ Id 4.5V @ 1.24mA
Gate Charge (Qg) (Max) @ Vgs 102 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 4975 pF @ 400 V
Power Dissipation (Max) 227W (Tc)
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package PG-TO220-3
Package / Case TO-220-3
Base Product Number IPP65R050
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 448-IPP65R050CFD7AAKSA1,SP003793132
Standard Package 50
Win Source Part Number 1024622-IPP65R050CFD7AAKSA1
Ultra Librarian 3D Model Ultra Librarian IPP65R050CFD7AAKSA1 CAD Model

Description

The 1024622-IPP65R050CFD7AAKSA1 is an N-channel MOSFET transistor from Infineon Technologies.

  • It is designed for use in automotive applications and is AEC-Q101 qualified.
  • The CoolMOS CFD7A series transistor has a drain to source voltage of 650 V and a continuous drain current of 45A @ 25°C.
  • It has a low Rds on resistance of 50mOhm @ 24.8A and 10V Vgs.
  • The gate charge is 102 nC @ 10V Vgs and the input capacitance is 4975 pF @ 400 Vds.
  • The device is mounted through a hole and has a TO-220-3 package.
  • The operating temperature range is between -40°C to 150°C, and it is ECCN EAR99 compliant.
