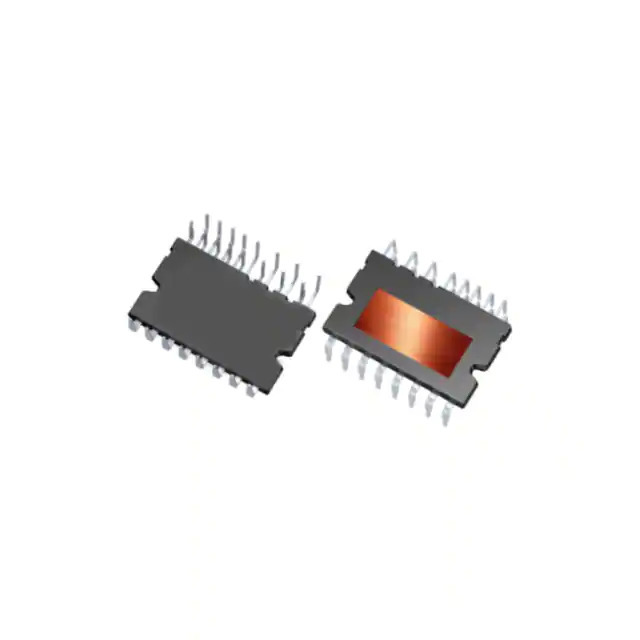

IM564X6DXKMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IM564X6DXKMA1

Part No IM564X6DXKMA1
Manufacturer Infineon Technologies
Catalog Power Drivers - Modules
Description PFC INTEGRATED IPM
Datasheet
IM564X6DXKMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Power Driver Modules
Mfr Infineon Technologies
Series CIPOS™
Package Tube
Product Status Active
Type MOSFET
Configuration 3 Phase Inverter
Current 20 A
Voltage 600 V
Voltage - Isolation 2000Vrms
Mounting Type Through Hole
Package / Case 24-PowerDIP Module (1.028", 26.10mm)
Base Product Number IM564X6
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1376869-IM564X6DXKMA1
Ultra Librarian 3D Model Ultra Librarian IM564X6DXKMA1 CAD Model

Description

The IM564X6DXKMA1 is a power driver module from Infineon Technologies. It is a MOSFET type module that operates with a voltage of 600V and a current of 20A.

  • Voltage: 600V
  • Current: 20A
  • Mounting Type: Through-Hole
  • Package: 24-PowerDIP
  • Configuration: 3-Phase Inverter
  • Voltage Isolation: 2000Vrms
  • Product Status: Active
  • REACH Status: Unaffected
  • ECCN: EAR99
