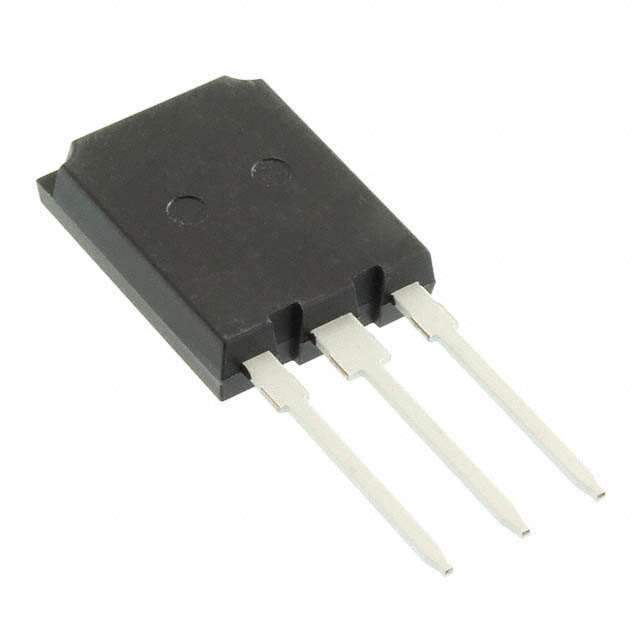

IKQ100N60TXKSA1 Real Image
Same model may have multiple batches, images only for reference.

IKQ100N60TXKSA1

Part No IKQ100N60TXKSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IGBT TRENCH/FS 600V 160A TO247-3 / IGBT Trench Field Stop 600 V 160 A 714 W Through Hole PG-TO247-3-46
Datasheet
IKQ100N60TXKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr Infineon Technologies
Series TrenchStop™
Package Tube
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 160 A
Current - Collector Pulsed (Icm) 400 A
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 100A
Power - Max 714 W
Switching Energy 3.1mJ (on), 2.5mJ (off)
Input Type Standard
Gate Charge 610 nC
Td (on/off) @ 25°C 30ns/290ns
Test Condition 400V, 100A, 3.6Ohm, 15V
Reverse Recovery Time (trr) 230 ns
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package PG-TO247-3-46
Base Product Number IKQ100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names INFINFIKQ100N60TXKSA1,SP001138296,2156-IKQ100N60TXKSA1
Standard Package 30
Win Source Part Number 1064844-IKQ100N60TXKSA1
Ultra Librarian 3D Model Ultra Librarian IKQ100N60TXKSA1 CAD Model

Description

The IKQ100N60TXKSA1 is a single IGBT transistor from Infineon Technologies.

  • Series: TrenchStop™
  • Type: Trench Field Stop
  • Voltage Collector Emitter Breakdown (Max): 600V
  • Current Collector (Ic) (Max): 160A
  • Package: Tube
  • Standard Package Quantity: 30
  • Operating Temperature: -40°C to 175°C (TJ)
  • Package/Case: TO-247-3
  • Supplier Device Package: PG-TO247-3-46
  • Cross-Reference: IKQ120N60TXKSA1, AUIRGP4066D1-E, IXXH75N60B3D1, STGW80V60DF, FGY75N60SMDIKQ100N60T, SP001138296
