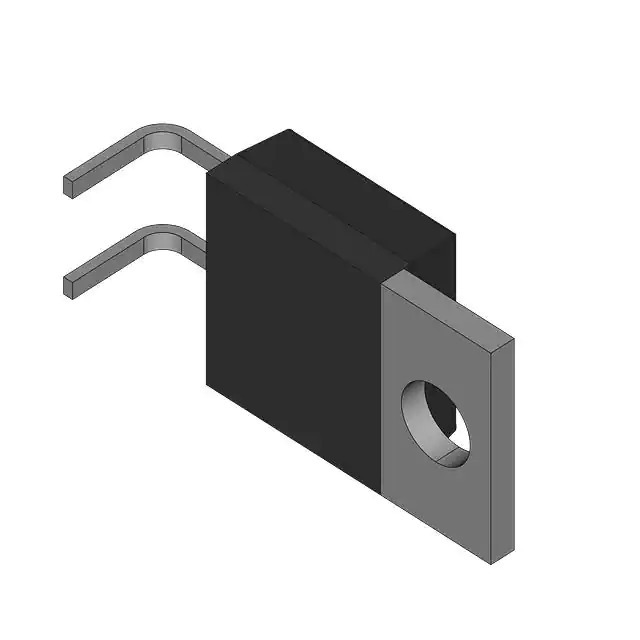

Same model may have multiple batches, images only for reference.

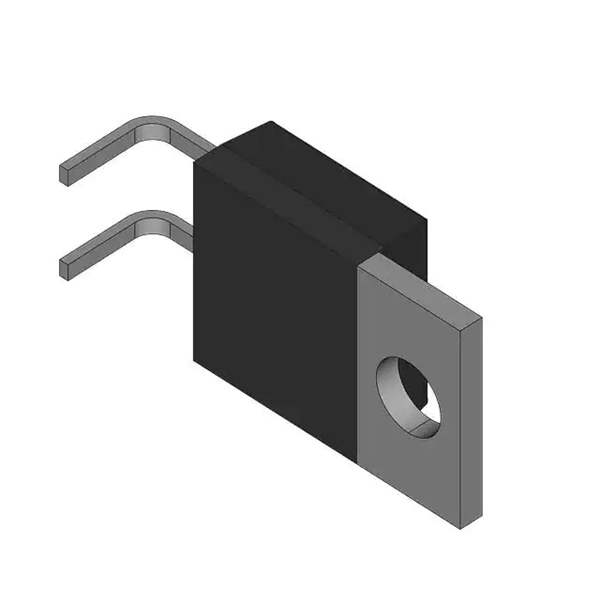

IDP15E65D1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IDP15E65D1

Part No IDP15E65D1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description DIODE GP 650V 30A TO220-2-1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Infineon Technologies
Series -
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 114 ns
Current - Reverse Leakage @ Vr 40 µA @ 650 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package PG-TO220-2-1
Operating Temperature - Junction -40°C ~ 175°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367351-IDP15E65D1
Ultra Librarian 3D Model Ultra Librarian IDP15E65D1 CAD Model

Description

The IDP15E65D1 is a single diode rectifier from Infineon Technologies. It is designed for use in discrete semiconductor products and comes in a TO-220-2 package.

  • Product Category: Discrete Semiconductor
  • Package: TO-220-2
  • Maximum Reverse Voltage (Vr): 650V
  • Average Rectified Current (Io): 30A
  • Forward Voltage (Vf): 1.7V @ 15A
  • Recovery Time: Less than 500ns (Fast Recovery)
  • Reverse Leakage Current: 40µA @ 650V
  • Temperature Range: -40°C to 175°C
