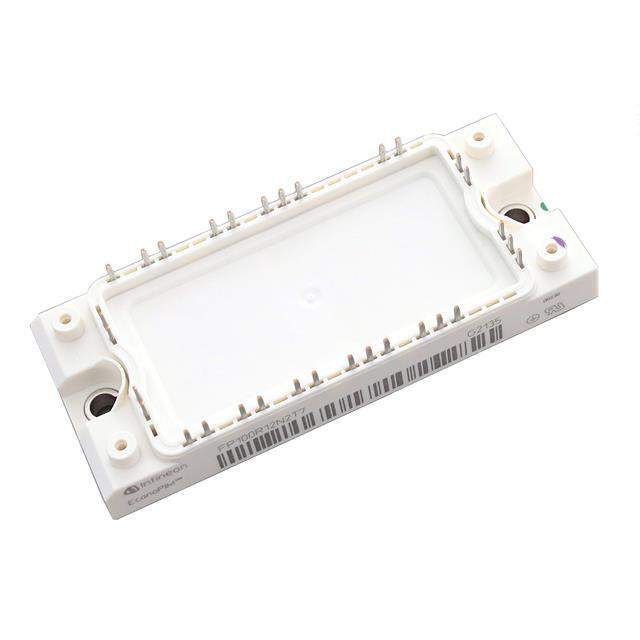

FP100R12N2T7BPSA1 Real Image
Same model may have multiple batches, images only for reference.

FP100R12N2T7BPSA1

Part No FP100R12N2T7BPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description LOW POWER ECONO AG-ECONO2-4 / IGBT Module Trench Field Stop Three Phase Inverter 1200 V 100 A 20 mW Chassis Mount AG-ECONO2B
Datasheet
FP100R12N2T7BPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series EconoPIM™ 2
Package Tray
IGBT Type Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 100 A
Power - Max 20 mW
Vce(on) (Max) @ Vge, Ic 1.5V @ 15V, 100A
Current - Collector Cutoff (Max) 10 µA
Input Capacitance (Cies) @ Vce 21.7 nF @ 25 V
Input Three Phase Bridge Rectifier
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package AG-ECONO2B
Base Product Number FP100R12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP005345908,448-FP100R12N2T7BPSA1
Standard Package 10
Win Source Part Number 1013913-FP100R12N2T7BPSA1
Ultra Librarian 3D Model Ultra Librarian FP100R12N2T7BPSA1 CAD Model

Description

The Infineon Technologies 946943 is a three-phase inverter configuration IGBT module. It is a member of the EconoPIM™ 2 series and has a Win Source Part Number of 1013913-FP100R12N2T7BPSA1.
