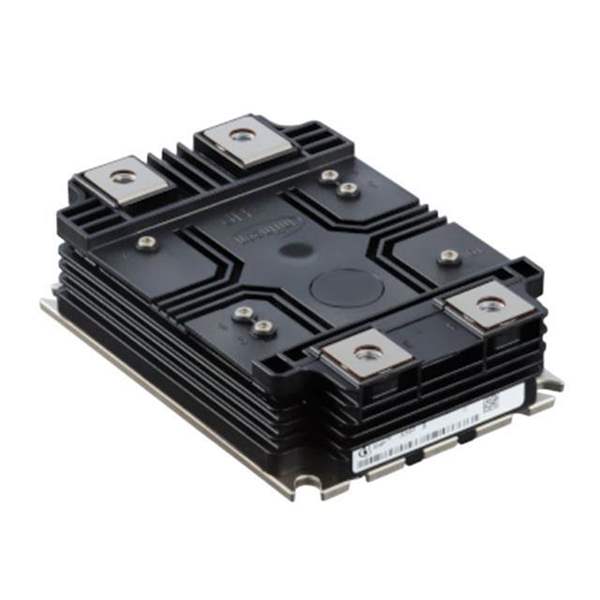

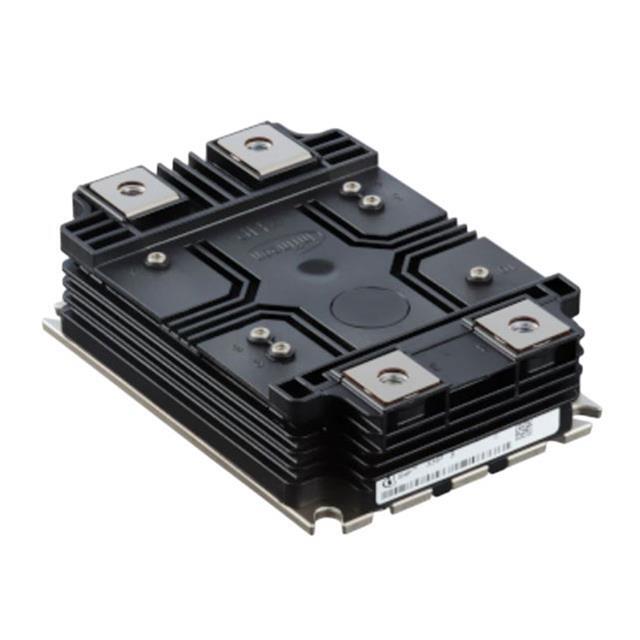

FF225R65T3E3BPSA1 Infineon Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

FF225R65T3E3BPSA1

Part No FF225R65T3E3BPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT Module Trench Field Stop 2 Independent 5900 V 225 A 1000000 W Chassis Mount AG-XHP3K65
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon Technologies
Series XHP™3
Packaging Tray
IGBT Type Trench Field Stop
Configuration 2 Independent
Voltage - Collector Emitter Breakdown (Max) 5900 V
Current - Collector (Ic) (Max) 225 A
Power - Max 1000000 W
Vce(on) (Max) @ Vge, Ic 3.4V @ 15V, 225A
Current - Collector Cutoff (Max) 5 mA
Input Capacitance (Cies) @ Vce 65.6 nF @ 25 V
Input Standard
NTC Thermistor No
Temperature Range - Operating 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package AG-XHP3K65
Base Product Number FF225R65
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1482108-FF225R65T3E3BPSA1
Ultra Librarian 3D Model Ultra Librarian FF225R65T3E3BPSA1 CAD Model
