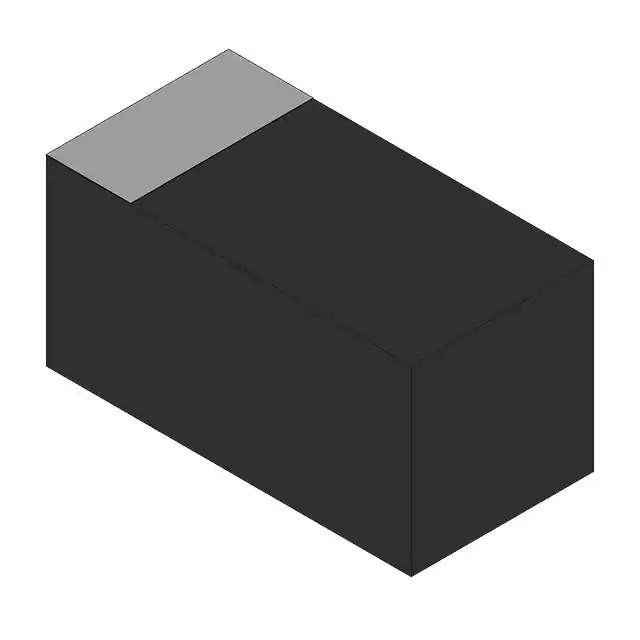

Same model may have multiple batches, images only for reference.

ESD3V3S1B-02LSE6327

Name: ESD3V3S1B-02LSE6327
Brand: Infineon Technologies
SKU: 730815
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ESD3V3S1B-02LSE6327
Manufacturer	Infineon Technologies
Catalog	TVS - Diodes
Description	TRANS VOLTAGE SUPPRESSOR DIODE
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Infineon Technologies
Package	Bulk
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Clamping (Max) @ Ipp	6.8V (Typ)
Current - Peak Pulse (10/1000µs)	8A (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	14pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	PG-TSSLP-2-1
Standard Package	6,990 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	730815-ESD3V3S1B-02LSE6327
Ultra Librarian 3D Model	Ultra Librarian ESD3V3S1B-02LSE6327 CAD Model

Alternative Products

Description

The 730815-ESD3V3S1B-02LSE6327 is a Zener type transient voltage suppressor (TVS) diode designed for general-purpose circuit protection, manufactured by Infineon Technologies.

Voltage - Reverse Standoff (Typ): 3.3V
Voltage - Clamping (Max) @ Ipp: 6.8V @ 8A
Capacitance @ Frequency: 14pF @ 1MHz
Mounting Type: Surface Mount
Package / Case: 0201 (0603 Metric)
Operating Temperature: -40°C to 125°C
Series: Active
Standard Package: 6,990
