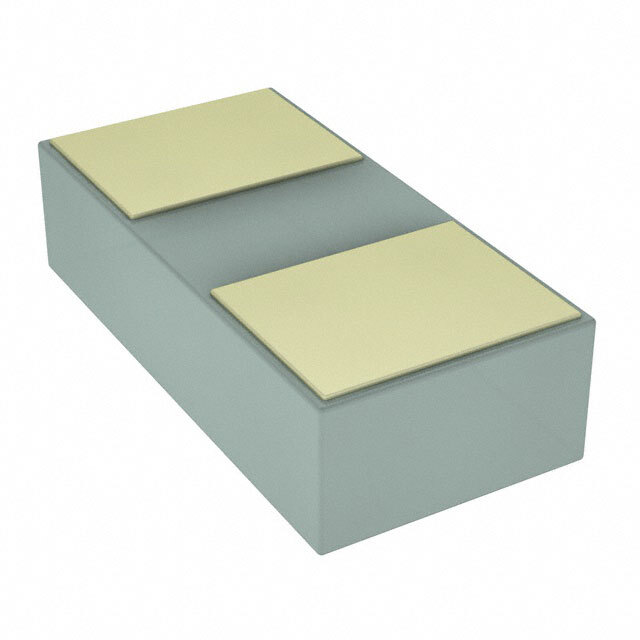

Same model may have multiple batches, images only for reference.
ESD108B1CSP0201XTSA1
Same model may have multiple batches, images only for reference.

ESD108B1CSP0201XTSA1

Part No ESD108B1CSP0201XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 41VC WLL-2-1
Datasheet
ESD108B1CSP0201XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 19 Weeks
Features 41V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount WLL-2-1
Manufacturer Infineon Technologies
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 0201 (0603 Metric)
Case / Package WLL-2-1
Family Name ESD108
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number ESD108B1CSP0201XTSA1CT, ESD108B1CSP0201XTSA1DKR, ESD108B1CSP0201XTSA1TR, SP001126862
Quantity per package 15000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871136-ESD108B1CSP0201XTSA1
Ultra Librarian 3D Model Ultra Librarian ESD108B1CSP0201XTSA1 CAD Model

Description

The Infineon Technologies ESD108B1CSP0201XTSA1 Tvs Diode is designed to protect electronic devices from electrostatic discharge (ESD) events.

  • Clamp: 41V clamp
  • Ipp: 3A (8/20μs)
  • Package: reel - TR
  • Mounting: surface
  • Family: ESD108 family
  • Category: circuit protection device
  • ECCN: EAR99
  • Popularity: medium popularity
  • Quantity per Package: 15000 devices
  • Estimated Production Lead Time: 19 weeks
  • REACH: unaffected
  • HTSUS: 8541.10.0080
