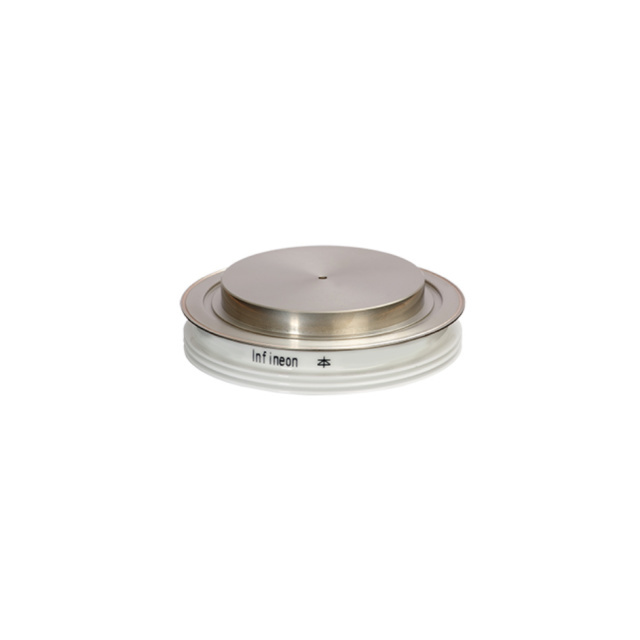

D3001N68TXPSA1 Infineon Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

D3001N68TXPSA1

Part No D3001N68TXPSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description Diode 6800 V 3910A Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Infineon Technologies
Packaging Tray
Technology Standard
Voltage - DC Reverse (Vr) (Max) 6800 V
Current - Average Rectified (Io) 3910A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 4000 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 mA @ 6800 V
Mounting Type Chassis Mount
Package / Case DO-200AE
Operating Temperature - Junction -40°C ~ 160°C
Base Product Number D3001N68
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1480241-D3001N68TXPSA1
Ultra Librarian 3D Model Ultra Librarian D3001N68TXPSA1 CAD Model
