Products specifications

Manufacturer Infineon Technologies
Win Source Part Number 1155635-BTS949
Manufacturer Homepage www.infineon.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BTS949 CAD Model

Description

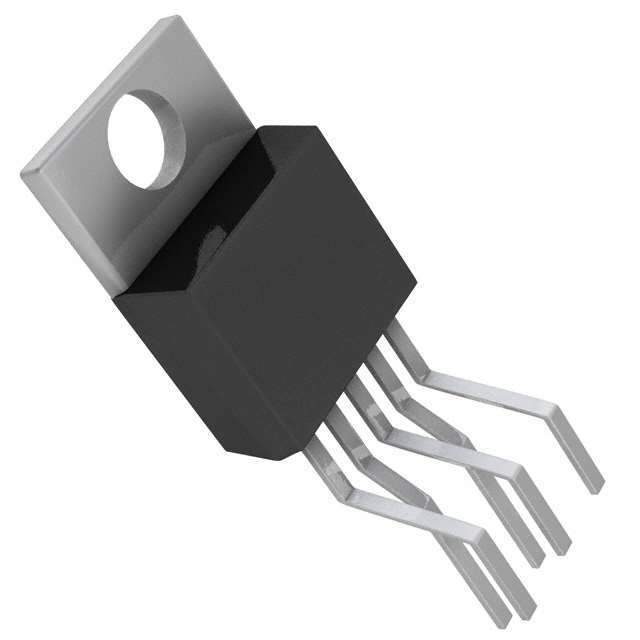

The BTS949 is a high-side power switch manufactured by Infineon Technologies. It's designed to control various loads in automotive applications, offering protection and diagnostic features. It is frequently used in body control modules, lighting applications, and other automotive electronic systems.

Applications:

  • Automotive Lighting: Used to control and protect exterior and interior lighting systems.
  • Body Control Modules: Implemented in body control modules for managing wipers, windows, and door locks.
  • Central Locking Systems: Controls and protects central locking systems in vehicles.
  • Windshield Wipers: Powers and protects windshield wiper motors.
  • Power Windows: Controls and protects power window motors.

Features:

  • Overload Protection: Protects the switch and connected load from overcurrent conditions.
  • Short Circuit Protection: Shuts down the switch in the event of a short circuit to prevent damage.
  • Overtemperature Protection: Disables the switch when the temperature exceeds a safe limit.
  • Diagnostic Feedback: Provides information about the switch's condition, such as overload or short circuit.
  • Logic Level Input: Controlled by a logic level input, allowing easy integration with microcontrollers.
  • Voltage Clamping: Protects the switch from voltage spikes and surges.

Benefits:

  • Enhanced System Reliability: Integrated protection features improve system reliability and prevent damage.
  • Reduced Component Count: Combines multiple functions into a single device.
  • Improved Safety: Protection features ensure safe operation.
  • Simplified Design: Logic level input simplifies system design.
  • Diagnostic Capabilities: Provides valuable information for system monitoring.

Additional Details:

The BTS949 is typically packaged in a surface-mount package for ease of PCB assembly. It operates over a voltage range suitable for automotive applications (e.g., 12V or 24V systems) and can handle moderate current levels. The diagnostic feedback is usually provided through a dedicated pin. Its robust design makes it suitable for the demanding environment of automotive electronics.
