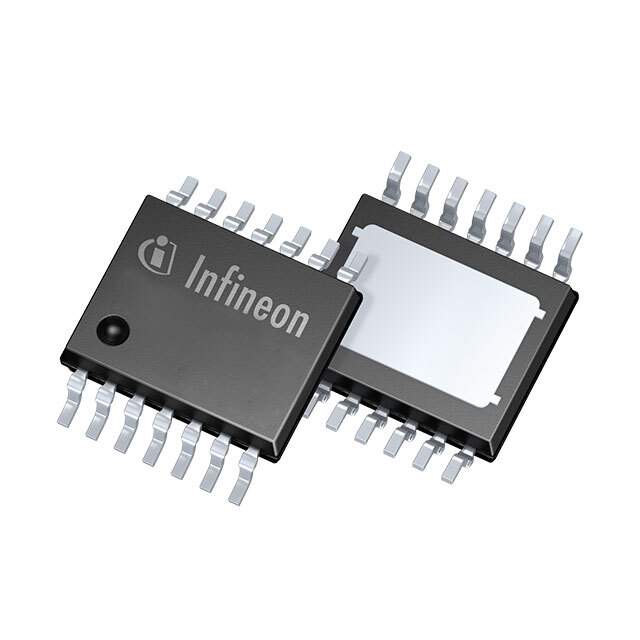

BTS70401EPAXUMA1 Real Image
Same model may have multiple batches, images only for reference.

BTS70401EPAXUMA1

Part No BTS70401EPAXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWTCH N-CHAN 1:1 TSDSO-14 / Power Switch/Driver 1:1 N-Channel 4.5A PG-TSDSO-14-22
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100, PROFET®
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 6V ~ 18V
Supply Voltage - Operating Not Required
Current - Output (Max) 4.5A
Rds On (Typ) 19mOhm
Input Type Non-Inverting
Fault Protection Over Current, Over Voltage, Short Circuit, UVLO
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-TSDSO-14-22
Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Base Product Number BTS70401
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names BTS70401EPAXUMA1CT,SP001225124,BTS70401EPAXUMA1TR,BTS70401EPAXUMA1-ND,BTS70401EPAXUMA1DKR
Standard Package 3,000
Win Source Part Number 969758-BTS70401EPAXUMA1
Ultra Librarian 3D Model Ultra Librarian BTS70401EPAXUMA1 CAD Model

Description

The Infineon Technologies BTS70401EPAXUMA1 is an integrated circuit that is part of the PMIC - Power Distribution Switches, Load Drivers category.

  • Series: Automotive, AEC-Q100, PROFET®
  • Package: Tape & Reel
  • Standard Package: 3,000
  • Mounting Type: SMD (SMT)
  • Output Type: N-Channel
  • Input Type: Non-Inverting
  • Interface: On/Off
  • Switch Type: General Purpose
  • Fault Protection: Over Current, Over Voltage, Short Circuit, and UVLO
  • Number of Outputs: 1
  • Current - Output (Max): 4.5A
  • Output Configuration: High Side
  • Voltage - Load: 6V ~ 18V
  • Rds On (Typ): 19mOhm
  • Package/Case: 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
  • Supplier Device Package: PG-TSDSO-14-22
  • Temperature Range - Operating: -40°C ~ 150°C (TJ)
  • MSL Level: 2A (4 Weeks)
  • REACH Status: REACH unaffected
  • HTSUS: 8542.39.0001
  • Base Product Number: BTS70401
