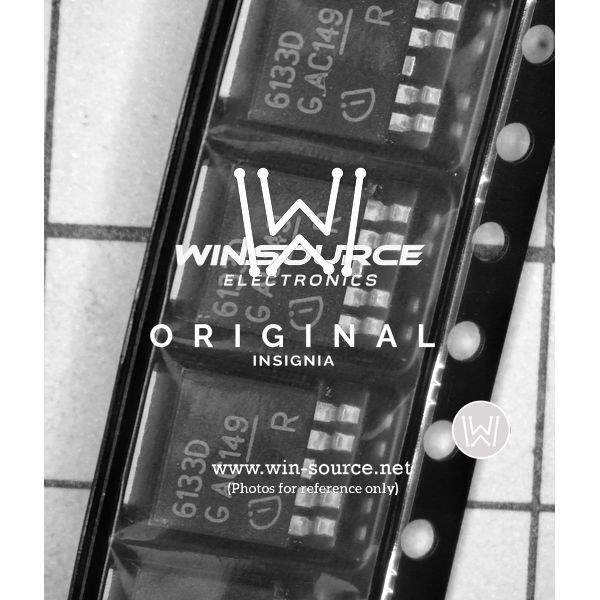

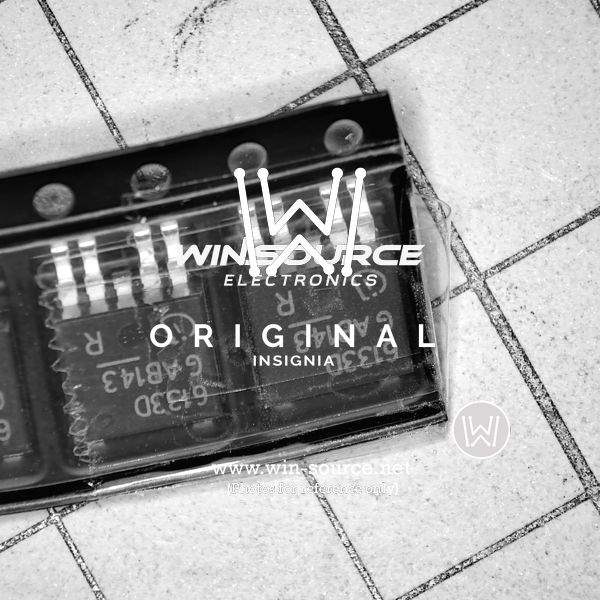

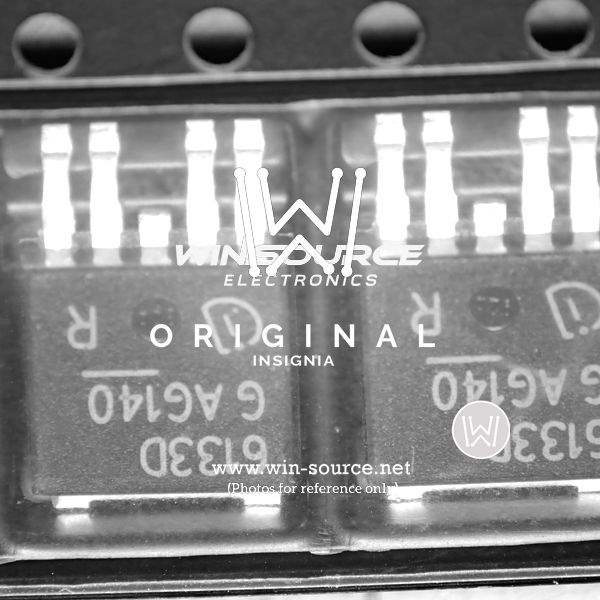

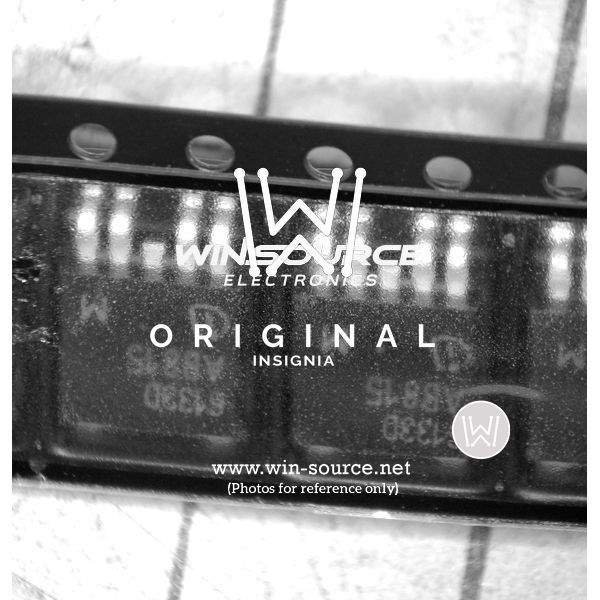

BTS6133D Infineon Technologies BTS6133D real image2847 BTS6133D real image2848 BTS6133D Real Image1 BTS6133D Real Image2
Same model may have multiple batches, images only for reference.
BTS6133D Infineon Technologies BTS6133D real image2847 BTS6133D real image2848 BTS6133D Real Image1 BTS6133D Real Image2
BTS6133D Infineon Technologies BTS6133D real image2847 BTS6133D real image2848 BTS6133D Real Image1 BTS6133D Real Image2
Same model may have multiple batches, images only for reference.

BTS6133D

Part No BTS6133D
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC HIGH SIDE PWR SWITCH DPAK-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Switch Type General Purpose
Number of Outputs 1
Output Type N-Channel
Voltage - Load 5.5 V to 38 V
Supply Voltage - Operating Not Required
Current - Output (Max) 33A
Rds On (Typ) 8 mOhm
Input Type Non-Inverting
Features Auto Restart
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package PG-TO252-5
Win Source Part Number 012224-BTS6133D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BTS6133D CAD Model

Description

Product Overview

Designed for excellence in power management, the BTS6133D is a high-efficiency switch ideal for both industrial and automotive applications. It brings together high performance and reliability in a compact form.

Features & Benefits

  • Advanced diagnostic and protection features
  • Exceptional energy efficiency with low power consumption
  • Space-saving design with easy installation

Applications

  • Electric vehicle power systems
  • Smart grid devices
  • Building automation solutions
