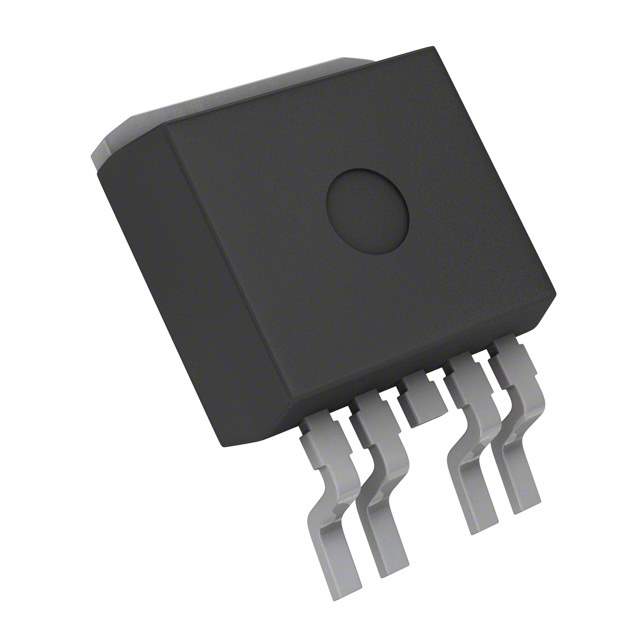

The BTS441RGATMA1 is a high-side power switch designed for automotive and industrial applications, part of Infineon Technologies' PROFET™ family. It's capable of driving various loads, offering robust protection and diagnostic features.

Applications

• Automotive Lighting: Control of various lighting functions including headlights, rear lights, and interior lighting.
• Automotive Body Control Modules (BCM): For controlling door locks, window lifts, seat adjustment, and other body-related functions.
• Engine Management Systems: Driving relays, valves, and small motors in engine control units.
• Industrial Control Systems: Powering and controlling solenoids, actuators, and other loads in industrial automation.

Features

• High-Side Switch: Simplifies wiring and reduces component count by switching the high side of the load.
• Overload Protection: Protects the switch from damage due to excessive current.
• Short-Circuit Protection: Quickly shuts down the switch to prevent damage in the event of a short circuit.
• Overtemperature Protection: Disables the switch when temperature exceeds safe limits, preventing thermal damage.
• Diagnostic Feedback: Provides status information such as overload, short circuit, and overtemperature.
• Current Limitation: Limits the current to a safe level during overload conditions.

Benefits

• Increased System Reliability: Comprehensive protection features ensure reliable operation and prevent damage.
• Simplified Design: Integrated features and high-side switching simplifies design and reduces component count.
• Enhanced Safety: Protection against short circuits and overtemperature minimizes potential hazards.
• Reduced Downtime: Diagnostic feedback enables quick identification and resolution of faults.

Additional Details

The BTS441RGATMA1 typically features a low on-resistance, minimizing power dissipation. It is designed to operate within a wide voltage range and withstand harsh automotive environments. It comes in a PG-DSO-14 package. Automotive AEC-Q100 qualified.
