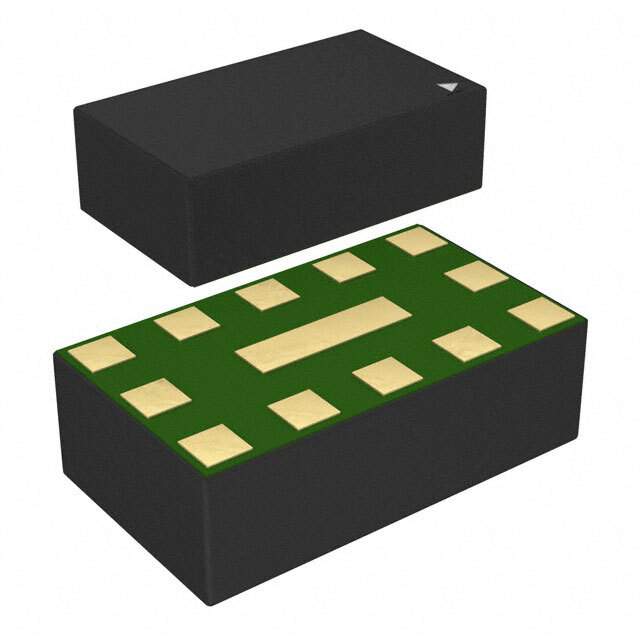

The BGS15MA12E6327 is a Single Pole Triple Throw (SP3T) RF switch manufactured by Infineon Technologies. This switch is designed to route RF signals efficiently in a variety of wireless applications, offering low insertion loss and high isolation for optimal performance.

Applications:

• Antenna Switching: Used in mobile phones and other wireless devices for switching between different antennas.
• Band Selection: Employed in multi-band communication systems for selecting the appropriate frequency band.
• RF Front-End Modules: Integrated into RF front-end modules for signal routing and control.
• Wireless LAN: Utilized in WLAN devices for signal path selection.
• Bluetooth Devices: Incorporated into Bluetooth modules for RF signal management.

Features:

• Low Insertion Loss: Minimizes signal attenuation, ensuring strong signal strength.
• High Isolation: Prevents signal leakage between different ports, maintaining signal integrity.
• Fast Switching Speed: Enables quick switching between different signal paths.
• Single Supply Voltage: Operates with a single positive supply voltage, simplifying power supply design.
• Small Form Factor: Compact design allows for integration into space-constrained applications.
• RoHS Compliant: Complies with the Restriction of Hazardous Substances directive, ensuring environmental friendliness.

Benefits:

• Improved RF Performance: Low insertion loss and high isolation enhance overall system performance and reliability.
• Reduced Power Consumption: Efficient design minimizes power consumption, extending battery life in portable devices.
• Design Flexibility: Small form factor allows for easy integration into various applications.
• Cost-Effective Solution: Provides a cost-effective solution for RF signal routing needs.

Additional Details:

The BGS15MA12E6327 typically operates in the frequency range of 0.1 GHz to 6.0 GHz, making it suitable for various wireless communication standards. It features a control voltage range compatible with standard CMOS logic levels, simplifying the control interface. Key specifications include an insertion loss of approximately 0.4 dB at 2 GHz, an isolation of around 28 dB at 2 GHz, and a switching speed in the order of microseconds. This switch is available in a small SMD package, making it suitable for automated assembly processes. It's designed to provide consistent performance across a wide range of operating conditions and is commonly found in mobile phones, tablets, and other wireless devices where efficient RF signal management is crucial.
