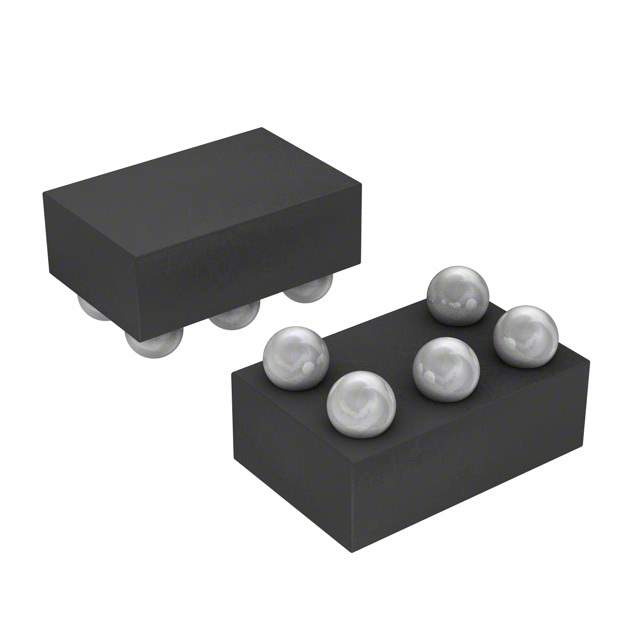

BGF112E6328XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BGF112E6328XTSA1

Part No BGF112E6328XTSA1
Manufacturer Infineon Technologies
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 15 OHM/0.005UF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 2
Attenuation Value 30dB @ 30MHz to 1.5GHz
Resistance - Channel (Ohms) 15
Values R = 15 Ohms, C = 5000pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.046" L x 0.030" W (1.16mm x 0.76mm)
Height 0.026" (0.65mm)
Win Source Part Number 1023315-BGF112E6328XTSA1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BGF112E6328XTSA1 CAD Model

Description

The Infineon Technologies BGF112E6328XTSA1 is a low pass RC (Pi) filter designed for use in data lines for mobile devices.

  • Voltage Rating: -
  • Height: 0.026" (0.65mm)
  • Sensing Range Trip: 10mT
  • Sensing Range Release: -10mT
  • Operating Temperature Range: -40°C to 85°C
  • Package: 6-TSOP
  • Purpose: Bipolar switch
  • Supply Voltage Range: 2.7 V to 18 V
  • Maximum Current Supply: 7mA
  • Current Output: 10mA (maximum)
  • Polarization: South pole
  • Output Type: Open collector
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
