Same model may have multiple batches, images only for reference.

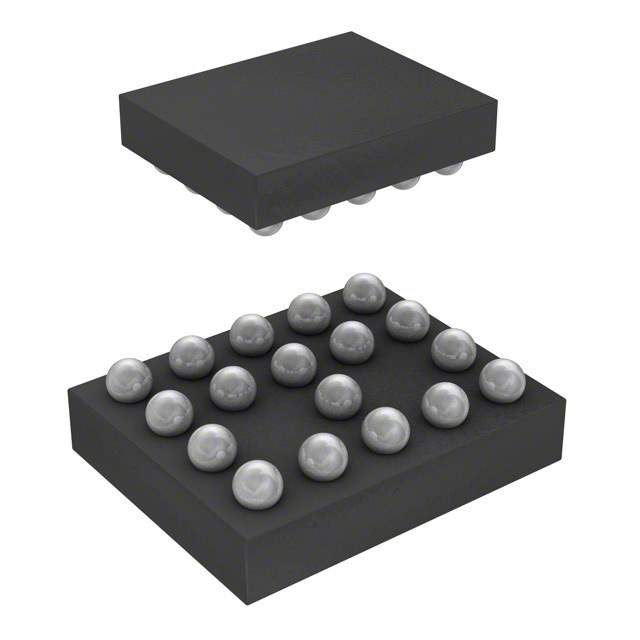

BGF 108L E6328 Real Image
Same model may have multiple batches, images only for reference.

BGF 108L E6328

Part No BGF 108L E6328
Manufacturer Infineon Technologies
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 28PF (TOTAL) ESD SMD
Datasheet
BGF 108L E6328 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 5th
Technology LC
Number of Channels 7
Attenuation Value 45dB @ 800MHz to 2.2GHz
Resistance - Channel (Ohms) 90
Current 25mA
Values C = 28pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 5V
Mounting SMD (SMT)
Dimension 0.083" L x 0.067" W (2.10mm x 1.70mm)
Height 0.026" (0.65mm)
Win Source Part Number 1023314-BGF 108L E6328
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BGF 108L E6328 CAD Model

Description

The 1023314-BGF 108L E6328 is a low-pass filter designed for data lines in mobile devices.

  • Voltage Rating: 5V
  • Current: 25mA
  • Type: LC filter
  • Channels: 7
  • Attenuation: 45dB @ 800MHz to 2.2GHz
  • Filter Order: 5th
  • Resistance: 90 ohms/channel
  • Total Capacitance: 28pF
  • Features: ESD protection
  • Status: obsolete(EOL)
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.083" L x 0.067" W (2.10mm x 1.70mm)
  • Mounting: SMD (SMT) technology
