Same model may have multiple batches, images only for reference.

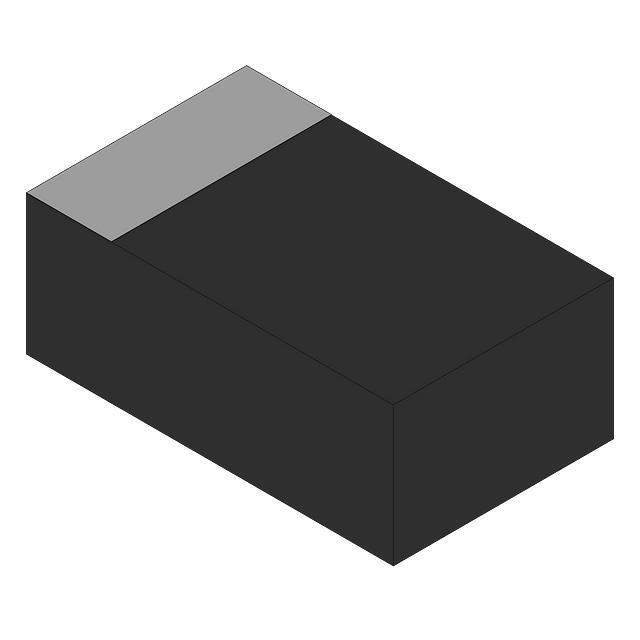

BAT5402LRHE6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BAT5402LRHE6327XTSA1

Part No BAT5402LRHE6327XTSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA TSLP-2
Datasheet
BAT5402LRHE6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 800mV @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package PG-TSLP-2
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1022159-BAT5402LRHE6327XTSA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BAT5402LRHE6327XTSA1 CAD Model

Description

The Infineon Technologies BAT5402LRHE6327XTSA1 is a Schottky diode that is designed for use in discrete semiconductor products.

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 200mA (DC)
  • Forward Voltage: 800mV @ 100mA
  • Reverse Recovery Time: 5ns
  • Current Reverse Leakage @ Vr: 2μA @ 25V
  • Capacitance @ Vr, F: 10pF @ 1V, 1MHz
  • Package: PG-TSLP-2
  • Popularity: Medium
  • Supply and Demand Status: Balanced
