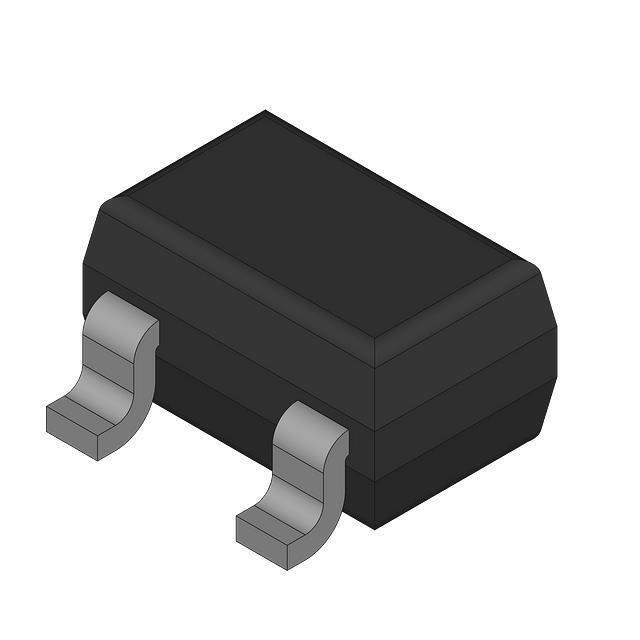

BAS7006WH6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BAS7006WH6327XTSA1

Part No BAS7006WH6327XTSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 70V SOT323 / Diode Array 1 Pair Common Anode Schottky 70 V 70mA (DC) Surface Mount SC-70, SOT-323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer Infineon Technologies
Packaging Reel - TR
Diode Configuration 1 Pair Common Anode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 70 V
Current - Average Rectified (Io) (per Diode) 70mA (DC)
Voltage - Forward (Vf) (Max) @ If 1 V @ 15 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 100 ps
Current - Reverse Leakage @ Vr 100 nA @ 50 V
Operating Temperature - Junction 150°C (Max)
Mounting Surface Mount
Case / Package SC-70, SOT-323
Supplier Device Package PG-SOT323
Base Product Number BAS7006
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number SP000749824,448-BAS7006WH6327XTSA1DKR,BAS7006WH6327XTSA1TR,BAS7006WH6327XTSA1TR-ND,448-BAS7006WH6327XTSA1CT,INFINFBAS7006WH6327XTSA1,2156-BAS7006WH6327XTSA1,BAS 70-06W H6327-ND,BAS 70-06W H6327,448-BAS7006WH6327XTSA1TR
Standard Package 3,000
Win Source Part Number 1325719-BAS7006WH6327XTSA1
Ultra Librarian 3D Model Ultra Librarian BAS7006WH6327XTSA1 CAD Model

Description

The Infineon BAS7006WH6327XTSA1 is a Schottky diode with a voltage DC reverse (Vr) (Max) of 70 V and a voltage forward (Vf) (Max) @ If of 1 V @ 15 mA.

  • Voltage DC Reverse (Vr) (Max): 70 V
  • Voltage Forward (Vf) (Max) @ If: 1 V @ 15 mA
  • Package: SC-70, SOT-323
  • Current Reverse Leakage @ Vr: 100 nA @ 50 V
  • Diode Configuration: 1 Pair Common Anode
  • Current Average Rectified (Io) (per diode): 70mA (DC)
