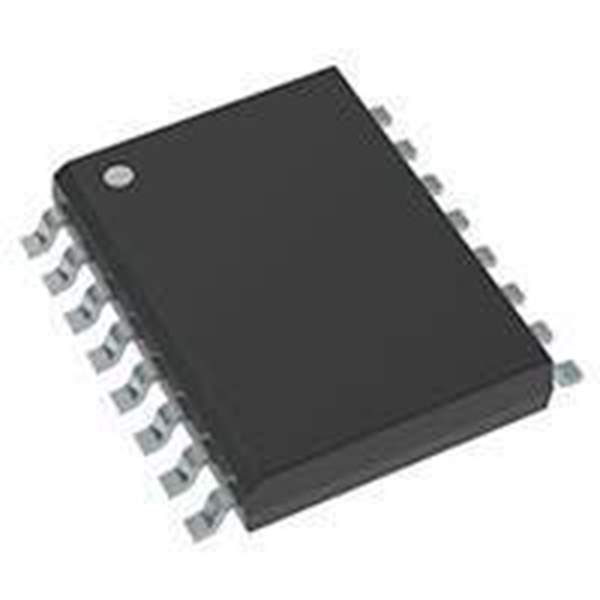

2EDS7165HXUMA1Infineon Technologies
Same model may have multiple batches, images only for reference.

2EDS7165HXUMA1

Part No 2EDS7165HXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDGE 16SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel, P-Channel MOSFET
Voltage - Supply 20V
Logic Voltage - VIL, VIH -, 1.65V
Current - Peak Output (Source, Sink) 1A, 2A
Input Type Non-Inverting
Rise / Fall Time (Typ) 6.5ns, 4.5ns
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package PG-DSO-16-30
Ultra Librarian 3D Model Ultra Librarian 2EDS7165HXUMA1 CAD Model

Description

Half-Bridge Gate Driver IC Non-Inverting PG-DSO-16-30
