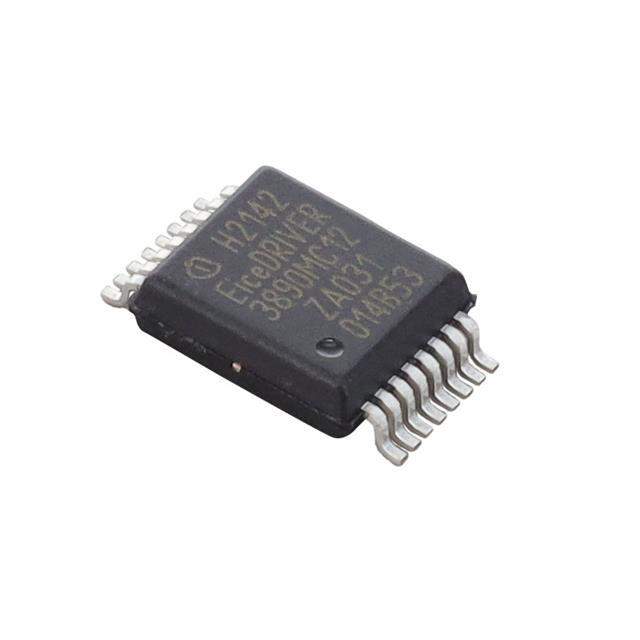

1ED3890MC12MXUMA1 Real Image
Same model may have multiple batches, images only for reference.

1ED3890MC12MXUMA1

Part No 1ED3890MC12MXUMA1
Manufacturer Infineon Technologies
Catalog Isolators - Gate Drivers
Description ISOLATED DRIVER PG-DSO-16 / 9A Gate Driver Capacitive Coupling 5700Vrms 1 Channel PG-DSO-16-28
Datasheet
1ED3890MC12MXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Isolators - Gate Drivers
Mfr Infineon Technologies
Series EiceDriver™
Package Tape & Reel
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 5700Vrms
Common Mode Transient Immunity (Min) 200V/ns
Propagation Delay tpLH / tpHL (Max) 270ns, 262ns
Rise / Fall Time (Typ) 15ns, 15ns
Current - Output High, Low 9A, 9A
Current - Peak Output 9A
Voltage - Output Supply 13V ~ 25V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 16-BSSOP (0.295", 7.50mm Width)
Supplier Device Package PG-DSO-16-28
Approval Agency UL, VDE
Base Product Number 1ED3890
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1339197-1ED3890MC12MXUMA1
Ultra Librarian 3D Model Ultra Librarian 1ED3890MC12MXUMA1 CAD Model

Description

The 1ED3890MC12MXUMA1 is an Isolator Gate Driver from Infineon Technologies.

  • Series: EiceDriver™
  • Mounting Type: Surface Mount
  • Package: 16-BSSOP (0.295", 7.50mm Width)
  • Technology: Capacitive Coupling
  • Current - Output High, Low: 9A, 9A
  • Rise / Fall Time (Typ): 15ns, 15ns
  • Number of Channels: 1
  • Voltage - Isolation: 5700Vrms
  • Common Mode Transient Immunity (Min): 200V/ns
  • Propagation Delay tpLH / tpHL (Max): 270ns, 262ns
  • Current - Peak Output: 9A
  • Voltage - Output Supply: 13V ~ 25V
