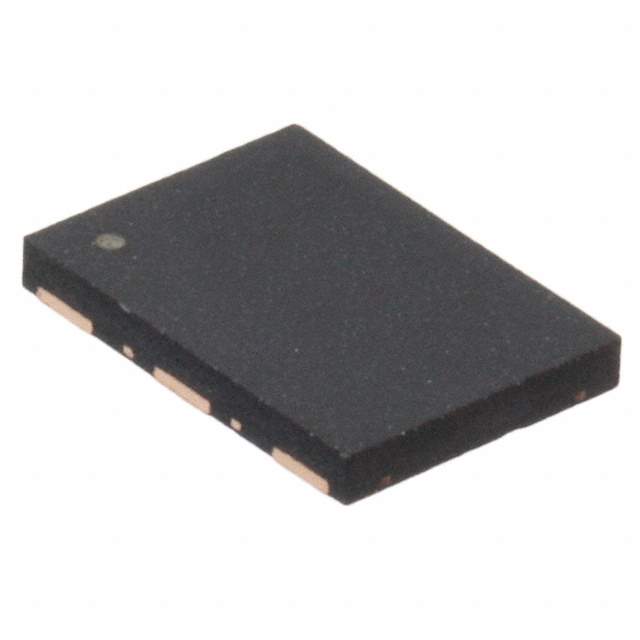

IDT4MA100000Z3AACUGI8 Real Image
Same model may have multiple batches, images only for reference.

IDT4MA100000Z3AACUGI8

Part No IDT4MA100000Z3AACUGI8
Manufacturer IDT, Integrated Device Technology Inc
Catalog Oscillators
Description OSC MEMS 100.000MHZ LVPECL SMD
Datasheet
IDT4MA100000Z3AACUGI8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer IDT, Integrated Device Technology Inc
Series 4MA
Part Status Obsolete(EOL)
Type MEMS (Silicon)
Frequency 100MHz
Function Enable/Disable
Output LVPECL
Operating Supply Voltage 3.3V
Frequency Stability ±50ppm
Operating Temperature Range -40°C ~ 85°C
Maximum Supply Current 100mA (Typ)
Mounting SMD
Package 6-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Maximum) 0.035" (0.90mm)
Win Source Part Number 776502-IDT4MA100000Z3AACUGI8
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IDT4MA100000Z3AACUGI8 CAD Model

Description

The IDT 776502-IDT4MA100000Z3AACUGI8 is a MEMS (Silicon) type oscillator that is designed for use in a range of electronic applications. This oscillator has a frequency of 100MHz and operates at a temperature range of -40°C to 85°C.

  • Frequency: 100MHz
  • Temperature Range: -40°C to 85°C
  • Package: 6-SMD, no lead
  • Height: 0.035" (0.90mm)
