Same model may have multiple batches, images only for reference.

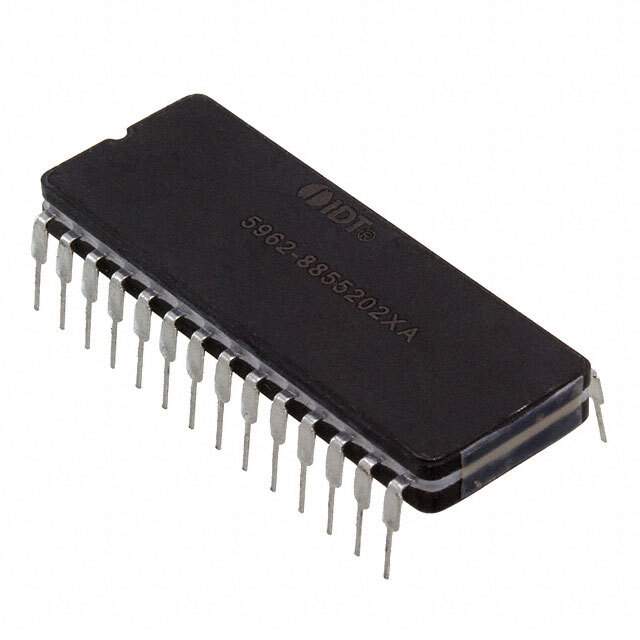

7164S100DB Real Image
Same model may have multiple batches, images only for reference.

7164S100DB

Part No 7164S100DB
Manufacturer IDT, Integrated Device Technology Inc
Catalog SRAM
Description IC SRAM 64KBIT 100NS 28CDIP / SRAM Chip Async Single 5V 64K-bit 8K x 8 100ns 28-Pin CDIP Tube
Datasheet
7164S100DB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer IDT, Integrated Device Technology Inc
Packaging Tube
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 64Kb (8K x 8)
Write Cycle Time - Word, Page 100ns
Access Time 100ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -55°C ~ 125°C (TA)
Mounting Style Through Hole
Package 28-CDIP (0.600", 15.24mm)
Manufacturer Package 28-CerDip
Win Source Part Number 776570-7164S100DB
Popularity Medium
Supply and Demand Status Limited
Family Name 7164S
ECCN 3A001.a.2.c
Country of Origin Taiwan
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 7164S100DB CAD Model

Description

The IDT 776570-7164S100DB is an electronic component that is categorized as Integrated Circuits (ICs).

  • Manufacturer: Integrated Device Technology Inc
  • Win Source Part Number: 776570-7164S100DB
  • Packaging: Tube
  • Mounting Style: Through hole
  • Operating Temperature: -55°C ~ 125°C (TA)
  • Package: 28-CDIP (0.600", 15.24mm)
  • Memory Type: SRAM - Asynchronous
  • Operating Supply Voltage: 4.5 V ~ 5.5 V
  • Memory Type: Volatile
  • Memory Size: 64Kb (8K x 8)
  • Access Time: 100ns
  • Family Name: 7164S
  • Write Cycle Time - Word, Page: 100ns
  • Memory Interface: Parallel
  • Manufacturer Package: 28-CerDip
  • Alternative Parts: P4C164-150CWMB, P4C164L-120CWMB, P4C164-120CWMB, MT5C6408C-70/XT
  • ECCN: 3A001.a.2.c
  • Country of Origin: Taiwan
  • Estimated EOL Date: 2029
  • Supply and Demand: Limited
