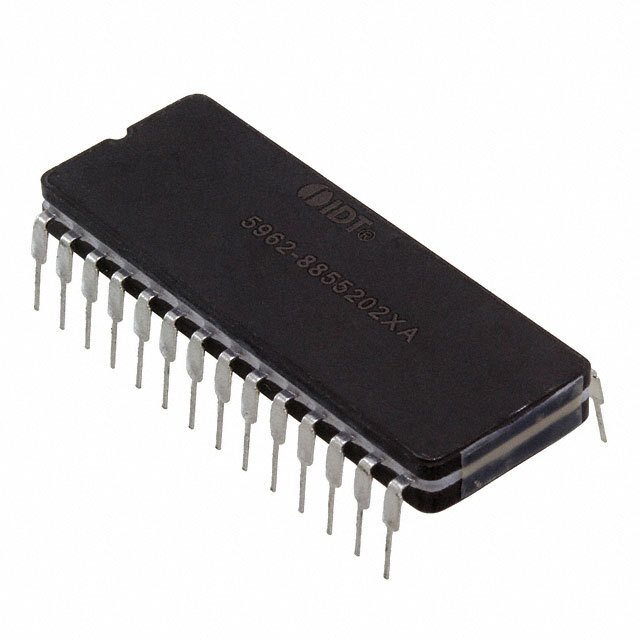

Same model may have multiple batches, images only for reference.
7164L20DB IDT, Integrated Device Technology Inc
Same model may have multiple batches, images only for reference.

7164L20DB

Part No 7164L20DB
Manufacturer IDT, Integrated Device Technology Inc
Catalog SRAM
Description IC SRAM 64KBIT 20NS 28CDIP / SRAM Chip Async Single 5V 64K-bit 8K x 8 20ns 28-Pin CDIP Tube
Datasheet
7164L20DB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer IDT, Integrated Device Technology Inc
Packaging Tube
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 64Kb (8K x 8)
Write Cycle Time - Word, Page 20ns
Access Time 20ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -55°C ~ 125°C (TA)
Mounting Style Through Hole
Package 28-CDIP (0.600", 15.24mm)
Manufacturer Package 28-CerDip
Win Source Part Number 776566-7164L20DB
Popularity Medium
Supply and Demand Status Limited
Family Name 7164L
ECCN 3A001.a.2.c
Country of Origin Taiwan
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 7164L20DB CAD Model

Description

The IDT, Integrated Device Technology Inc 7164L20DB SRAM is a high-quality, volatile memory that is perfect for a wide range of integrated circuit applications.

  • Memory Size: 64Kb (8K x 8)
  • Access Time: 20ns
  • Package: 28-CDIP (0.600", 15.24mm)
  • Technology: SRAM - Asynchronous
  • Operating Supply Voltage: 4.5 V ~ 5.5 V
  • Memory Format: SRAM
  • Popularity: Medium
  • Supply and Demand: Limited
