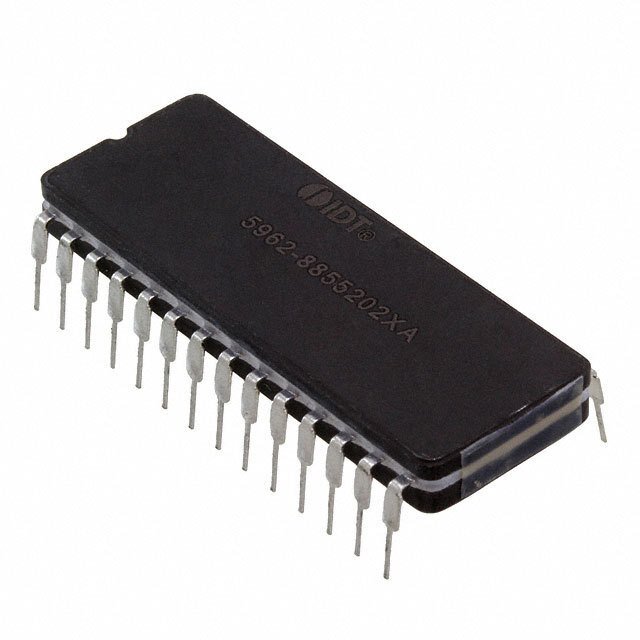

Same model may have multiple batches, images only for reference.
71256S100DB IDT, Integrated Device Technology Inc
Same model may have multiple batches, images only for reference.

71256S100DB

Part No 71256S100DB
Manufacturer IDT, Integrated Device Technology Inc
Catalog SRAM
Description IC SRAM 256KBIT 100NS 28CDIP / SRAM Chip Async Single 5V 256K-bit 32K x 8 100ns 28-Pin CDIP Tube
Datasheet
71256S100DB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer IDT, Integrated Device Technology Inc
Packaging Tube
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 256Kb (32K x 8)
Write Cycle Time - Word, Page 100ns
Access Time 100ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -55°C ~ 125°C (TA)
Mounting Style Through Hole
Package 28-CDIP (0.600", 15.24mm)
Manufacturer Package 28-CerDip
Win Source Part Number 776545-71256S100DB
Popularity Medium
Supply and Demand Status Limited
Family Name 71256S
Introduction Date August 01, 1996
ECCN 3A001.a.2.c
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 71256S100DB CAD Model

Description

The IDT 71256S100DB is an asynchronous SRAM IC with a memory size of 256Kb (32K x 8).

  • Access Time: 100ns
  • Operating Supply Voltage: 4.5 V to 5.5 V
  • Package: 28-CDIP (0.600", 15.24mm)
  • Mounting: Tube
  • Estimated EOL Date: 2029
  • Halogen-Free Compliant: Yes
  • Introduction Date: August 01, 1996
