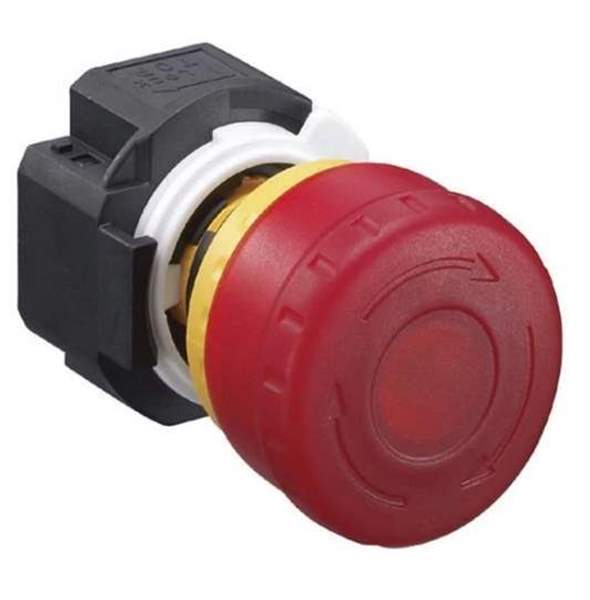

XA1E-LV311Q4-R IDEC
Same model may have multiple batches, images only for reference.

XA1E-LV311Q4-R

Part No XA1E-LV311Q4-R
Manufacturer IDEC
Catalog Switches- Emergency Stop (E-Stop) Switches
Description SW ESTOP PULL/TWST RESET 3A 125V
Datasheet
XA1E-LV311Q4-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches >Emergency Stop (E-Stop) Switches
Manufacturer IDEC
Packaging  Bulk
Part Status Active
Mounting Type Panel Mount, Front
Reset Operation Pull or Twist
Circuit DPST-NO/NC
Switch Function On-Off, Off-On
Features Illuminated (Red)
Current Rating (Amps) 3A (AC), 2A (DC)
Ultra Librarian 3D Model Ultra Librarian XA1E-LV311Q4-R CAD Model

Description

  • Two button sizes: ø29 and ø40mm
  • Lead-free, RoHS compliant, (EU directive 2002/95/EC)
  • Depth behind the panel: Standard - only 27.9mm for 1 to 4 contacts Unibody - only 23.9mm for 1NC or 2NC
  • IDEC’s original “Safe break action” ensures that the NC contacts open when the contact block is detached from the operator.
  • Push-to-lock, Pull or Turn-to-reset operator
  • Direct opening action mechanism (IEC60947-5-5, 5.2, IEC60947-5-1, Annex K)
  • Safety lock mechanism (IEC60947-5-5, 6.2)
  • Degree of protection: Standard - IP65 (IEC60529) Unibody - IP65 and IP40 (IEC 60529)
  • UL, c-UL recognized. EN compliant
  • UL NISD2 category emergency stop button (File# E305148)
