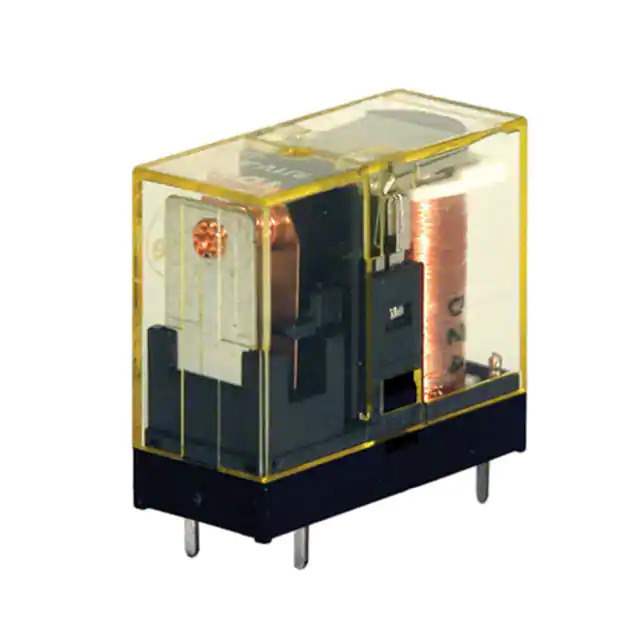

RJ1V-A-D24 Real Image
Same model may have multiple batches, images only for reference.

RJ1V-A-D24

Part No RJ1V-A-D24
Manufacturer IDEC
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 12A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Datasheet
RJ1V-A-D24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr IDEC
Series RJ
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 12 A
Switching Voltage 250VAC - Nom
Coil Current 22.1 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.08 kOhms
Base Product Number RJ1V
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0075
California Prop 65 Warning Information
Win Source Part Number 891725-RJ1V-A-D24
Ultra Librarian 3D Model Ultra Librarian RJ1V-A-D24 CAD Model

Description

The RJ1V-A-D24 is a power relay designed for various applications.

  • Contact Form: SPST-NO
  • Contact Rating: 12A
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.08 kOhms
  • Operate Time: 15ms
  • Release Time: 10ms
  • Latching: Non-latching
  • Switching Voltage: 250VAC
  • Temperature Range: -40°C to 70°C
  • Manufacturer: IDEC
  • Series: RJ
  • Packaging: Bulk
  • Status: Active
  • Contact Material: Silver nickel
  • Mounting Type: Through-hole
