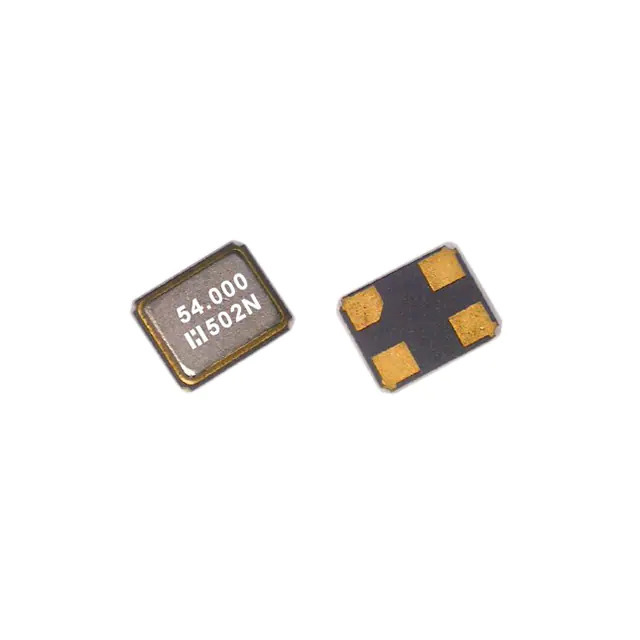

Same model may have multiple batches, images only for reference.
E3SB27E00000DE Hosonic Electronic Co., Ltd
Same model may have multiple batches, images only for reference.

E3SB27E00000DE

Part No E3SB27E00000DE
Manufacturer Hosonic Electronic Co., Ltd
Catalog Oscillators
Description XTAL 3225 27MHZ, 10PF
Datasheet
E3SB27E00000DE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Hosonic Electronic Co., Ltd
Series E3SB
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 27 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.030" (0.75mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1366336-E3SB27E00000DE
Ultra Librarian 3D Model Ultra Librarian E3SB27E00000DE CAD Model

Description

The E3SB27E00000DE is a 27MHz crystal manufactured by Hosonic Electronic Co., Ltd.

  • Applications: Microcontrollers, communication devices, and timing circuits
  • Frequency: 27MHz
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 10pF
  • Equivalent Series Resistance (ESR): 50 Ohms
  • Package / Case: 4-SMD (No Lead)
  • Operating Temperature Range: -20°C to 70°C
  • Status: Active
  • Series: E3SB
  • Mounting Type: Surface Mount
