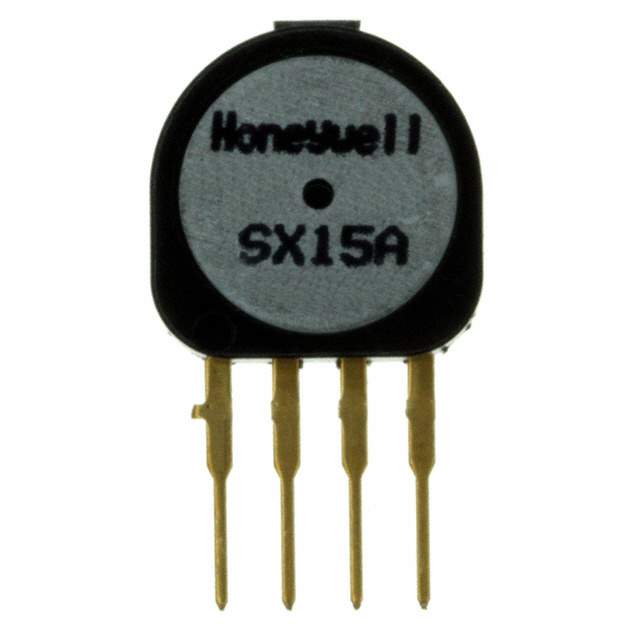

Same model may have multiple batches, images only for reference.

SX15A

Get a Quote

Part No	SX15A
Manufacturer	Honeywell
Catalog	Pressure Sensors, Transducers
Description	SENSOR HI-IMP 15PSIA BUTN PKG / Pressure Sensor 15PSI (103.42kPa) Absolute 0 mV ~ 110 mV (5V) 4-SIP Module
Datasheet	SX15A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Pressure Sensors, Transducers
Mfr	Honeywell Sensing and Productivity Solutions
Package	Bulk
Product Status	Obsolete
Applications	Board Mount
Pressure Type	Absolute
Operating Pressure	15PSI (103.42kPa)
Output Type	Wheatstone Bridge
Output	0 mV ~ 110 mV (5V)
Accuracy	±0.5%
Voltage - Supply	12V
Port Style	No Port
Maximum Pressure	45PSI (310.26kPa)
Temperature Range - Operating	-40°C ~ 85°C
Package / Case	4-SIP Module
Supplier Device Package	Button
Other Names	287-1078R,287-1078
Standard Package	25
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	9026.20.4000
Win Source Part Number	1234841-SX15A
Ultra Librarian 3D Model	Ultra Librarian SX15A CAD Model

Description

The Honeywell pressure sensor is a high-performance device that is ideal for board mount applications.

Pressure Type: absolute
Operating Pressure: 15PSI (103.42kPa)
Port Style: no port style
Output Type: Wheatstone Bridge
Output: 0 mV ~ 110 mV (5V)
Accuracy: ±0.5%
Sensor Package: 4-SIP Module
Voltage Supply: 12V
Maximum Pressure: 45PSI (310.26kPa)
Temperature Range: -40°C ~ 85°C
