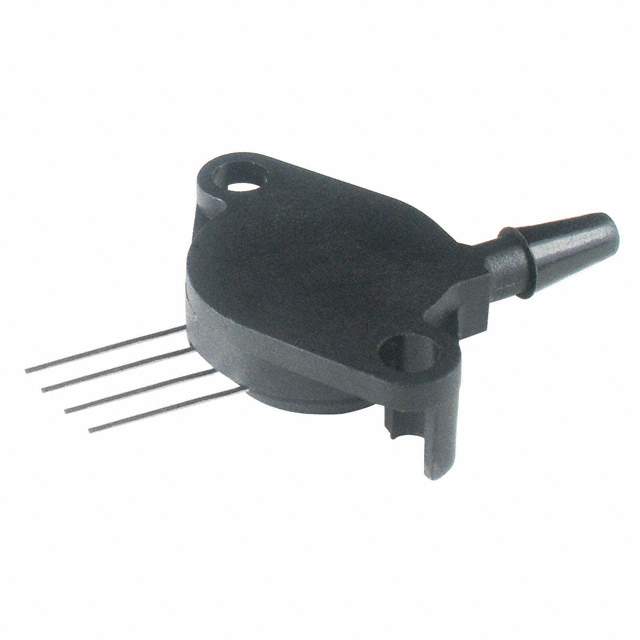

Same model may have multiple batches, images only for reference.

SSCSHNN600MG2A3

Get a Quote

Part No	SSCSHNN600MG2A3
Manufacturer	Honeywell
Catalog	Pressure Sensors, Transducers
Description	SENSOR PRES 600PSI GAUG 3.3V SIP / Pressure Sensor 8.7PSI (60kPa) Vented Gauge Male - 0.19" (4.78mm) Tube 12 b 4-SIP, Side Port
Datasheet	SSCSHNN600MG2A3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Pressure Sensors, Transducers
Mfr	Honeywell Sensing and Productivity Solutions
Series	TruStability® SSC
Package	Bulk
Applications	Board Mount
Pressure Type	Vented Gauge
Operating Pressure	8.7PSI (60kPa)
Output Type	I2C
Output	12 b
Accuracy	±0.25%
Voltage - Supply	3V ~ 3.6V
Port Size	Male - 0.19" (4.78mm) Tube
Port Style	Barbed
Features	Amplified Output, Temperature Compensated
Termination Style	PC Pin
Maximum Pressure	29.01PSI (200kPa)
Temperature Range - Operating	-40°C ~ 85°C
Package / Case	4-SIP, Side Port
Supplier Device Package	4-SIP
Base Product Number	SSCSHNN
Standard Package	20
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	9026.20.4000
Win Source Part Number	1234318-SSCSHNN600MG2A3
Ultra Librarian 3D Model	Ultra Librarian SSCSHNN600MG2A3 CAD Model

Description

This is a pressure sensor from Honeywell Sensing and Productivity Solutions with a Win Source part number of 1234318-SSCSHNN600MG2A3.

Series: TruStability® SSC
Termination Style: PC pin
Package: bulk
Output Type: I2C
Output: 12 b
Accuracy: ±0.25%
Pressure Type: vented gauge
Operating Pressure: 8.7PSI (60kPa)
Maximum Pressure: 29.01PSI (200kPa)
Port Size: male - 0.19" (4.78mm) tube
Port Style: barbed
Voltage Supply: 3V ~ 3.6V
Package/Case: 4-SIP, side port
Supplier Device Package: 4-SIP
Operating Temperature: -40°C to 85°C
ECCN: EAR99
HTSUS: 9026.20.4000
