Same model may have multiple batches, images only for reference.

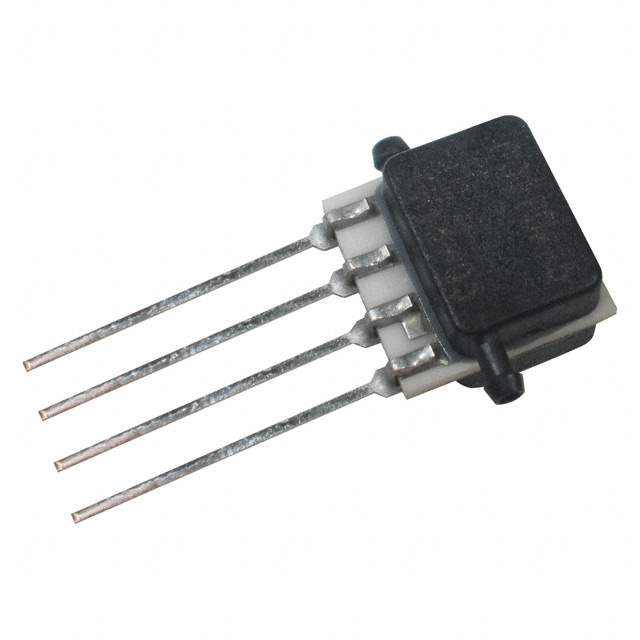

SSCSDRN2.5MD2A5 Real Image
Same model may have multiple batches, images only for reference.

SSCSDRN2.5MD2A5

Part No SSCSDRN2.5MD2A5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor ±0.04PSI (±0.25kPa) Differential Male - 0.19" (4.93mm) Tube, Dual 12 b 4-SIP, Dual Ports, Opposite Sides
Datasheet
SSCSDRN2.5MD2A5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±0.04PSI (±0.25kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 4.95V ~ 5.05V
Port Size Male - 0.19" (4.93mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±9.79PSI (±67.5kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Dual Ports, Opposite Sides
Supplier Device Package 4-SIP
Other Names 2266-SSCSDRN2.5MD2A5
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234298-SSCSDRN2.5MD2A5
Ultra Librarian 3D Model Ultra Librarian SSCSDRN2.5MD2A5 CAD Model

Description

This electronic component is a pressure sensor manufactured by Honeywell Sensing and Productivity Solutions.

  • Win Source Part Number: 1234298-SSCSDRN2.5MD2A5
  • Category: Sensors, Transducers>Pressure Sensors, Transducers
  • Series: TruStability® SSC
  • Features: Amplified Output and Temperature Compensated
  • Package: Bulk
  • Applications: Board Mount
  • Standard Package: 50
  • Output Type: I2C
  • Output: 12 b
  • Accuracy: ±0.25%
  • Pressure Type: Differential
  • Operating Pressure: ±0.04PSI (±0.25kPa)
  • Port Size: Male - 0.19" (4.93mm) Tube, Dual
  • Port Style: Barbed
  • Maximum Pressure: ±9.79PSI (±67.5kPa)
  • Voltage - Supply: 4.95V ~ 5.05V
  • Package / Case: 4-SIP, Dual Ports, Opposite Sides
  • Supplier Device Package: 4-SIP
  • Temperature Range - Operating: -40°C ~ 85°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 9026.20.4000
  • Other Names: 2266-SSCSDRN2.5MD2A5
