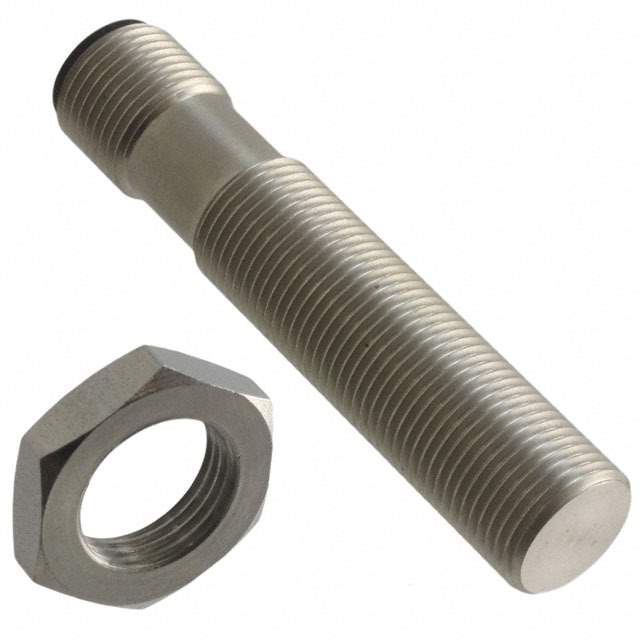

SNDJ-H3C-G01 Real Image
Same model may have multiple batches, images only for reference.

SNDJ-H3C-G01

Part No SNDJ-H3C-G01
Manufacturer Honeywell
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR HALL DIGITAL CONNECTOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Position, Proximity, Speed (Modules) - Industrial
Mfr Honeywell Sensing and Productivity Solutions
Series SNDJ
Package Bulk
Product Status Obsolete
Type Hall Effect Sensor
Output Type Digital
Actuator Material Ferrous Metals, Gear Tooth
Termination Style Connector
Frequency 15 kHz
Voltage - Supply 8V ~ 25V
Temperature Range - Operating -20°C ~ 100°C (TA)
Package / Case Barrel, Stainless Steel
Other Names SNDJH3CG01,480-2810
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1235368-SNDJ-H3C-G01
Ultra Librarian 3D Model Ultra Librarian SNDJ-H3C-G01 CAD Model

Description

The SNDJ-H3C-G01 is a Hall Effect Sensor from Honeywell Sensing and Productivity Solutions.

  • Application: Industrial magnetic sensors, transducers, and proximity sensors
  • Termination Style: Connector
  • Package: Bulk
  • Actuator Material: Ferrous metals and gear tooth
  • Output Type: Digital
  • Voltage Supply: 8V to 25V
  • Package/Case: Barrel stainless steel
  • Operating Temperature: -20°C to 100°C
  • Status: Obsolete
