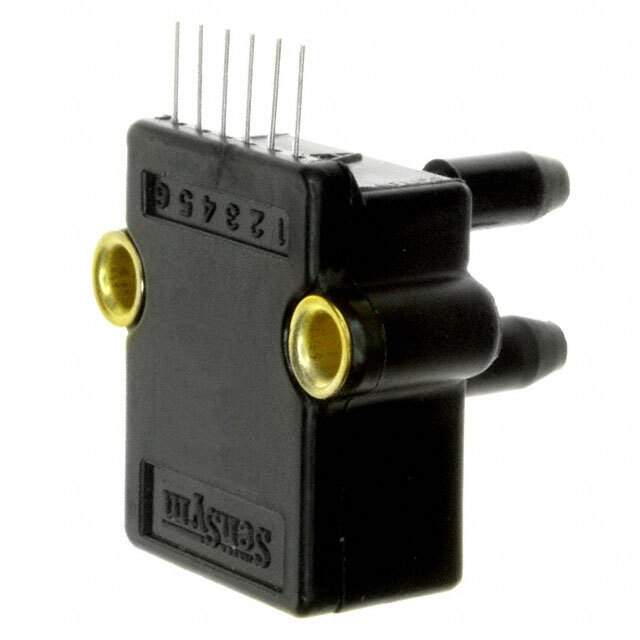

SCXL004DN Real Image
Same model may have multiple batches, images only for reference.

SCXL004DN

Part No SCXL004DN
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE DIFF 4" H2O 6SIP / Pressure Sensor 0.15PSI (1kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0 mV ~ 40 mV (12V) 6-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SCXL
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure 0.15PSI (1kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 40 mV (12V)
Accuracy ±1%
Voltage - Supply 18V
Port Size Male - 0.19" (4.8mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 0.36PSI (2.49kPa)
Temperature Range - Operating 0°C ~ 70°C
Package / Case 6-SIP Module
Base Product Number SCXL004
Other Names 287-1027,287-1027R,Q1307328,2266-SCXL004DN
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234796-SCXL004DN
Ultra Librarian 3D Model Ultra Librarian SCXL004DN CAD Model

Description

The SCXL004DN is a differential pressure sensor designed for board mount applications.

  • Output Type: Wheatstone bridge
  • Output Range: 0 mV to 40 mV (12V)
  • Series: SCXL
  • Temperature Compensated: Yes
  • Accuracy: ±1%
  • Operating Pressure: 0.15 PSI (1kPa)
  • Maximum Pressure: 0.36 PSI (2.49kPa)
  • Port Size: male - 0.19" (4.8mm) tube, dual
  • Port Style: barbed
  • Voltage Supply: 18V
  • Operating Temperature: 0°C to 70°C
  • Package: 6-SIP module
