Same model may have multiple batches, images only for reference.

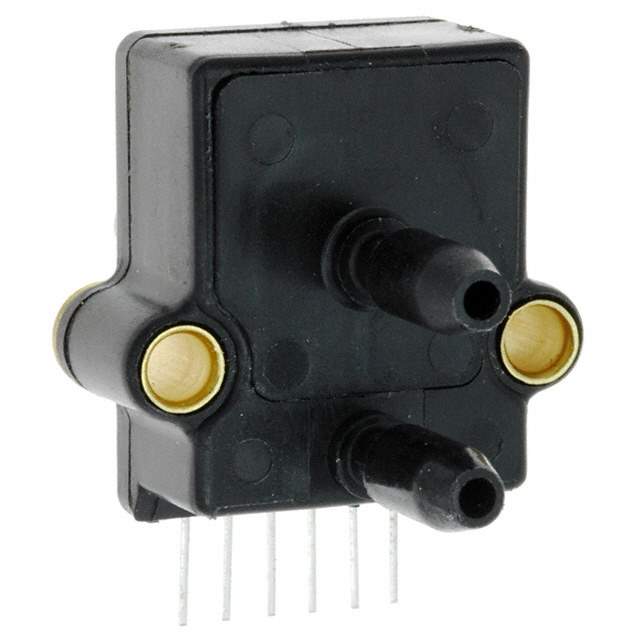

SCX01DN Real Image
Same model may have multiple batches, images only for reference.

SCX01DN

Part No SCX01DN
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR TEMP COMP 1PSID / Pressure Sensor 0psi to 1psi Differential/Gage 6-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series SCX
Pressure Type Differential
Operating Pressure 1 PSI (6.89 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 18 mV (12V)
Accuracy ±1%
Operating Supply Voltage 20V
Port Size Male - 0.19" (4.8mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 20 PSI (137.9 kPa)
Operating Temperature Range -40°C ~ 85°C
Package 6-SIP Module
Win Source Part Number 794019-SCX01DN
Popularity Medium
Supply and Demand Status Limited
Family Name SCX01DN
Introduction Date April 01, 2006
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian SCX01DN CAD Model

Description

The SCX01DN is a differential pressure sensor from Honeywell Sensing and Productivity Solutions.

  • Series: SCX
  • Temperature Compensation: Yes
  • Pressure Type: Differential
  • Operating Pressure: 1 PSI
  • Output Type: Wheatstone Bridge
  • Output Range: 0 mV to 18 mV
  • Accuracy: ±1%
  • Supply and Demand Status: Limited
  • Port Size: Male - 0.19" (4.8mm) Tube, Dual
  • Port Style: Barbed
  • Maximum Pressure: 20 PSI
  • Temperature Range: -40°C to 85°C
