Same model may have multiple batches, images only for reference.

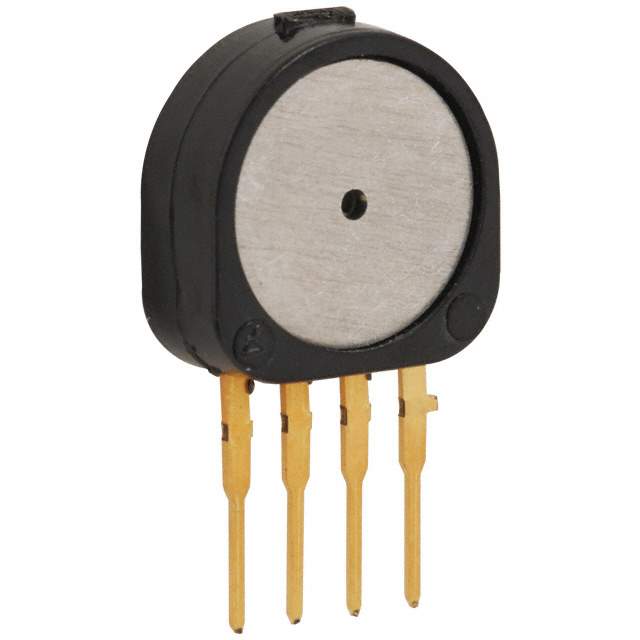

SCC15D Real Image
Same model may have multiple batches, images only for reference.

SCC15D

Part No SCC15D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 15PSI / Pressure Sensor 15PSI (103.42kPa) Differential 40 mV ~ 95 mV 4-SIP Module
Datasheet
SCC15D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SCC
Package Tray
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 40 mV ~ 95 mV
Accuracy ±0.5%
Port Style No Port
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Other Names 480-2859
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234804-SCC15D
Ultra Librarian 3D Model Ultra Librarian SCC15D CAD Model

Description

The SCC differential pressure sensor is a high-performance device with temperature compensation.

  • Temperature Compensation: Yes
  • Application: board mount
  • Standard Package: 25
  • Output: Wheatstone bridge
  • Output: 40 mV ~ 95 mV
  • Accuracy: ±0.5%
  • Operating Pressure: 15PSI (103.42kPa)
  • Maximum Pressure: 30PSI (206.84kPa)
