Same model may have multiple batches, images only for reference.

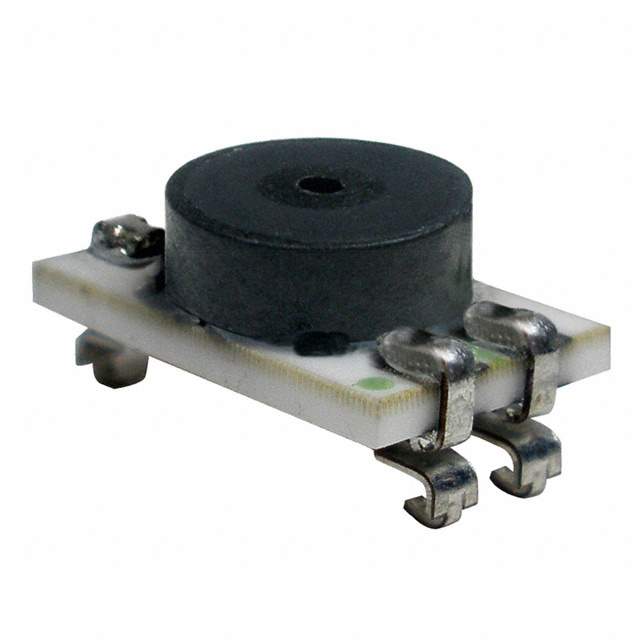

NBPMPNN030PAUNV Real Image
Same model may have multiple batches, images only for reference.

NBPMPNN030PAUNV

Part No NBPMPNN030PAUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 30PSI ABSO 12V SMT / Pressure Sensor 30PSI (206.84kPa) Absolute 0 mV ~ 105 mV (5V) 4-SMD, J-Lead, Top Port
Datasheet
NBPMPNN030PAUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 30PSI (206.84kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 105 mV (5V)
Accuracy ±0.25%
Voltage - Supply 1.8V ~ 12V
Port Style No Port
Termination Style J Lead
Maximum Pressure 60PSI (413.69kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package 4-SMD, J-Lead, Top Port
Base Product Number NBPMPNN
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 2266-NBPMPNN030PAUNV
Standard Package 50
Win Source Part Number 1336632-NBPMPNN030PAUNV
Ultra Librarian 3D Model Ultra Librarian NBPMPNN030PAUNV CAD Model

Description

The Honeywell pressure sensor is a high-quality electronic component that is ideal for use in various applications.

  • Packaging: Bulk
  • Standard Package: 50
  • Output Type: Wheatstone Bridge
  • Output: 0 mV ~ 105 mV (5V)
  • Accuracy: ±0.25%
  • Pressure Type: Absolute
  • Operating Pressure: 30PSI (206.84kPa)
  • Maximum Pressure: 60PSI (413.69kPa)
  • Voltage Supply: 1.8V ~ 12V
  • Operating Temperature: -40°C to 125°C
