Same model may have multiple batches, images only for reference.

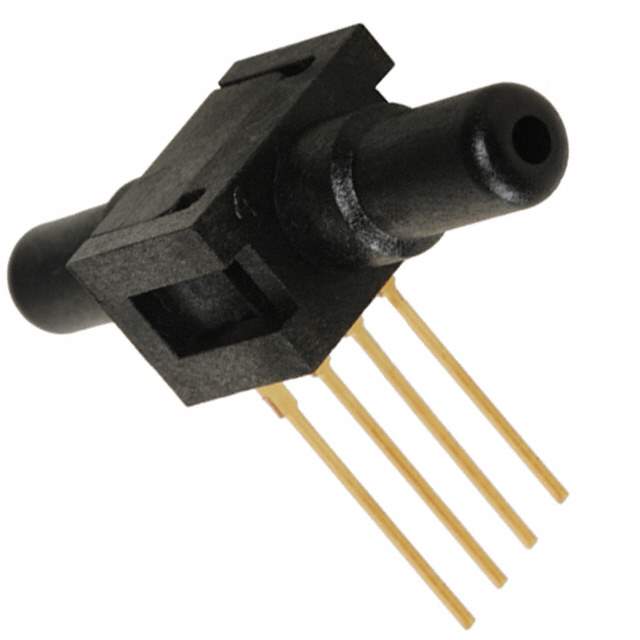

24PCCFA6D Real Image
Same model may have multiple batches, images only for reference.

24PCCFA6D

Part No 24PCCFA6D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 15PSI DIFFERENTIAL GAUGE / Pressure Sensor ±15PSI (±103.42kPa) Differential Male - 0.2" (5mm) Tube, Dual 0 mV ~ 225 mV (10V) 4-SIP Module
Datasheet
24PCCFA6D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Tray
Applications Board Mount
Pressure Type Differential
Operating Pressure ±15PSI (±103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 225 mV (10V)
Accuracy ±1%
Voltage - Supply 10V ~ 12V
Port Size Male - 0.2" (5mm) Tube, Dual
Port Style Barbless
Termination Style PC Pin
Maximum Pressure ±45PSI (±310.26kPa)
Temperature Range - Operating -40°C ~ 85°C
Case / Package 4-SIP Module
Base Product Number 24PCCFA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 480-2500
Standard Package 25
Win Source Part Number 1336483-24PCCFA6D
Ultra Librarian 3D Model Ultra Librarian 24PCCFA6D CAD Model

Description

The 24PCCFA6D is a pressure sensor manufactured by Honeywell Sensing and Productivity Solutions.

  • Category: Sensors, Transducers.
  • Packaging: Tray.
  • Applications: Board mount applications.
  • Output Type: Wheatstone bridge.
  • Output: 0 mV ~ 225 mV (10V).
  • Accuracy: ±1%.
  • Pressure Type: Differential.
  • Operating Pressure: ±15PSI (±103.42kPa).
  • Port Size: Male 0.2" (5mm).
  • Port: Dual ported with a barbless port style.
  • Maximum Pressure: ±45PSI (±310.26kPa).
  • Voltage Supply: 10V ~ 12V.
  • Temperature Range: -40°C ~ 85°C.
