Same model may have multiple batches, images only for reference.

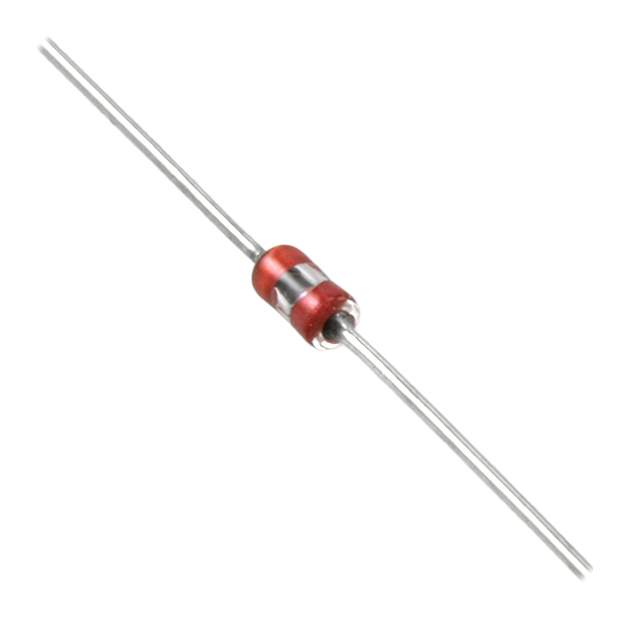

135-203LAG-J01 Real Image
Same model may have multiple batches, images only for reference.

135-203LAG-J01

Part No 135-203LAG-J01
Manufacturer Honeywell
Catalog Temperature Sensors - NTC Thermistors
Description THERMISTOR NTC 20KOHM 3974K DO35 / NTC Thermistor 20k DO-204AH, DO-35, Axial
Datasheet
135-203LAG-J01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Temperature Sensors - NTC Thermistors
Mfr Honeywell Sensing and Productivity Solutions
Series 135
Package Bulk
Resistance in Ohms @ 25°C 20k
Resistance Tolerance ±10%
B25/85 3974K
Temperature Range - Operating -60°C ~ 300°C
Length - Lead Wire 1.13" (28.60mm)
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Base Product Number 135-203
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names 2266-135-203LAG-J01
Standard Package 50
Win Source Part Number 1082864-135-203LAG-J01
Ultra Librarian 3D Model Ultra Librarian 135-203LAG-J01 CAD Model

Description

This temperature sensor is designed for use in electronic applications requiring a high degree of accuracy and reliability.

  • Resistance @ 25°C: 20k Ohms
  • Resistance Tolerance: ±10%
  • B25/85 Value: 3974K
  • Package: DO-204AH, DO-35, Axial
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -60°C to 300°C
