Same model may have multiple batches, images only for reference.

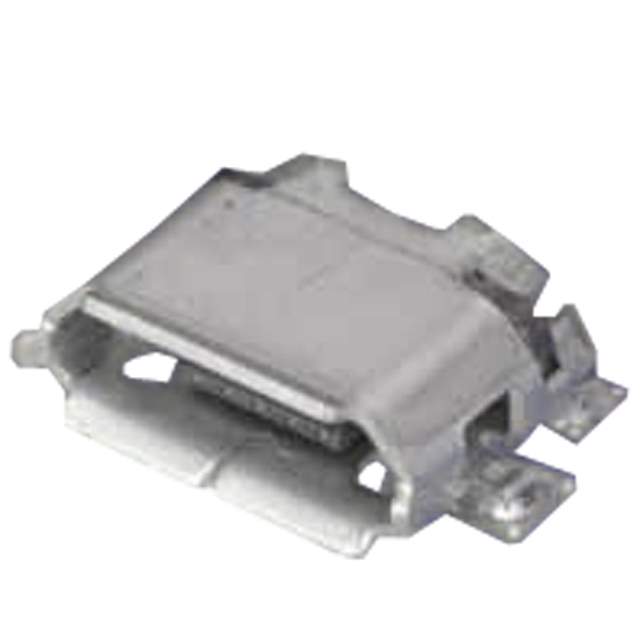

ZX62R-B-5P(30) Real Image
Same model may have multiple batches, images only for reference.

ZX62R-B-5P(30)

Part No ZX62R-B-5P(30)
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB MICRO B SMD R/A
Datasheet
ZX62R-B-5P(30) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Surface Mount, Right Angle
Mounting Feature Horizontal, Reverse Mount
Termination Solder
Features Pick and Place, Solder Retention
Temperature Range - Operating -30°C to 85°C
Number of Ports 1
Current Rating 1.8A
Voltage Rating 30VAC
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 114285-ZX62R-B-5P(30)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ZX62R-B-5P(30) CAD Model

Description

The Hirose Electric Co Ltd 114285-ZX62R-B-5P(30) is an active USB 2.0 micro B connector with a medium popularity among connectors and interconnects.

  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 30VAC
  • Current Rating: 1.8A
  • Mounting Style: Surface mount, right angle
  • Mounting Feature: Horizontal, reverse mount
  • Flammability Rating: UL94 V-0
  • Temperature Range: -30°C to 85°C
  • Package: 2k pcs
