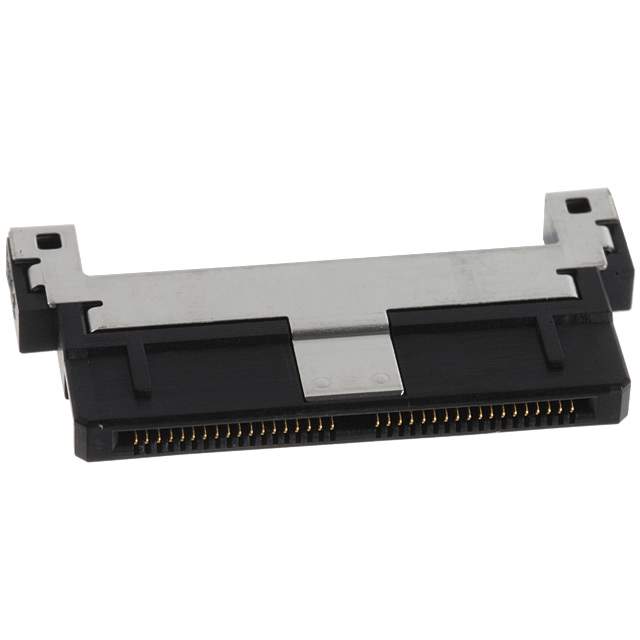

ST60X-36S Real Image
Same model may have multiple batches, images only for reference.

ST60X-36S

Part No ST60X-36S
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description Interface Connectors for Miniature, Portable Terminal Devices | CONN HEADER SMD R/A 36POS 0.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel
Status Obsolete
Connector Type Plug, Cradle
Contact Type Non-Gendered
Pitch - Mating 0.020" (0.50mm)
Number of Positions 36
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.116" (2.95mm)
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Polyamide (PA9T), Nylon 9T
Features Board Guide, Mounting Flange, Shielded
Temperature Range - Operating -30°C ~ 80°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 0.5A
Voltage Rating 100V
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1260342-ST60X-36S
Manufacturer Homepage www.hirose-connectors.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ST60X-36S CAD Model

Description

The ST60X-36S is a plug cradle connector manufactured by Hirose Electric Co Ltd.

  • Positions: 36
  • Mounting Style: Right Angle
  • Gender: Non-Gendered
  • Positions Loaded: All
  • Voltage Rating: 100V
  • Applications: Suitable for board to cable/wire
  • Supply and Demand Status: Balanced
