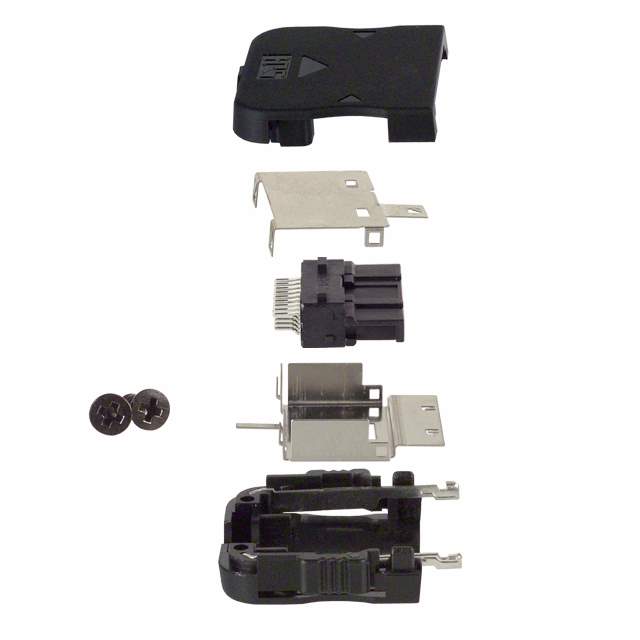

ST40X-18S-CV(80) Real Image
Same model may have multiple batches, images only for reference.

ST40X-18S-CV(80)

Part No ST40X-18S-CV(80)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Hirose Electric Co Ltd
Series ST
Package Tray
Product Status Obsolete
Connector Type Plug
Contact Type Non-Gender Specific
Number of Positions 18
Pitch 0.020" (0.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Fastening Type Lever Lock
Cable Termination Solder
Wire Type Discrete
Features Shielded
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Color Black
Other Names *ST40X-18S-CV(80),H11361,ST40X18SCV80
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1293392-ST40X-18S-CV(80)
Ultra Librarian 3D Model Ultra Librarian ST40X-18S-CV(80) CAD Model

Description

The Hirose Electric Co Ltd ST40X-18S-CV(80) is a rectangular connector that is designed for use in various electronic devices.

  • Connector Type: Plug
  • Fastening Type: Lever Lock
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Pitch: 0.020" (0.50mm)
  • Shielded: Yes
  • Manufacturer: Hirose Electric Co Ltd
